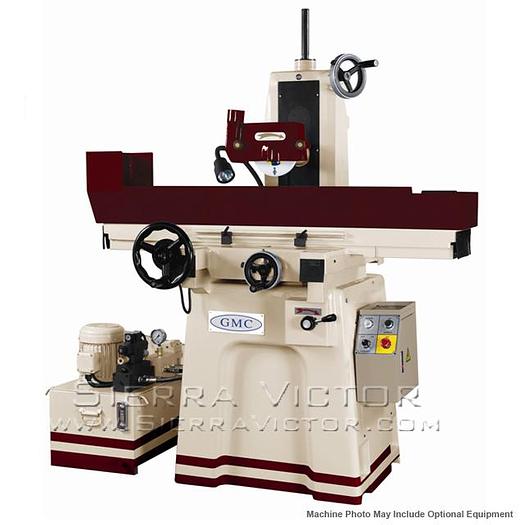

GMC Precision Manual Surface Grinder GMSG-818M
GMC Precision Manual Surface Grinder GMSG-818M
$10,750 FREE SHIPPING!
Description
Please note: many products ship straight from manufacturer 8” x 18” GMC Precision Manual Surface Grinder ISO 9001 100% made in Taiwan Precision roller ball ways Heavy Duty “Meehanite” Casting Roller tracks are Turcite-B coated for long life “Turcite B” Coating on ways Double Vee on cross slide Complete coolant system included Full splash guards Over 300 pounds table load capacity Hardened & precision ground & hand scraped ways Dynamically balanced spindle run-out within 0.00008” Safety 24 low voltage electric controls & overload protection Automatic continuous lubrication for all ways & leadscrews Adjustable longitudinal table stops and cross feed lock (4) preloaded class 7 (P4) high precision angular contact spindle bearings for high precision grinding Power source: 208V / 220V/ 230V, 3 –phase ( option: 440V/460V, 3-phase ) STANDARD EQUIPMENT: Complete Coolant System with Splash Guards Halogen Work Light Installed (1) Grinding Wheel with Flange 8” Dia. x 1/2”Thick x 1-1/4” Bore Grinding Wheel Extractor Diamond Wheel Dresser with Base Balance Stand & Wheel Wrench & Balance Arbor Automatic Lubrication System Tool Box with Tools & Leveling Pads Operation and Parts Manual CALL FOR PRICE: PART # ITEM SMC-818 8” x 18” standard permanent magnetic chuck FPMC-818 8” x 18” fine pole permanent magnetic chuck DC-6818 Dust collector system for GMSG-618 & 818 NW-818M 2-Axis NEWALL ® C-80 DRO for GMSG-818, USA, installed PDR Parallel dresser VARI-SP Variable spindle speeds from 50 rpm to 3,600 rpm R5-618M Rotary phase converter, USA , 5 HP
Specifications
| Manufacturer | GMC Machine Tools |
| Model | GMSG-818M |
| Condition | New |
| Stock Number | GMSG-818M |
| Table Size (chuck size) | 8" x 18" |
| Table Load Capacity | 300 lbs. |
| Table T-slot size | 9/16" |
| Grinding capacity, W x L | 7-7/8" x 18-3/4" |
| Max. longitudinal manual table travel | 19" |
| Max. cross manual table travel | 9" |
| Cross handwheel graduation | 0.001" |
| Cross handwheel per revolution | 0.2" |
| Vertical downfeed handwheel graduation | 0.0002" |
| Vertical downfeed handwheel per revolution | 0.05" |
| Max. spindle centerline to table surface | 16-1/2" |
| Spindle speed | 3,600 rpm |
| Spindle motor | 2 HP, 3-phase 230V or 460V |
| Coolant pump | 1/8 HP, 3-phase |
| Coolant tank capacity | 8 Gal. |
| Wheel size, Dia.x Thickness x Center Bore | 8" x 3/4" x 1-1/4" |
| Dimensions: L x W x H | 63" x 49" x 79" |
| Weight | 1,980 lbs. |
