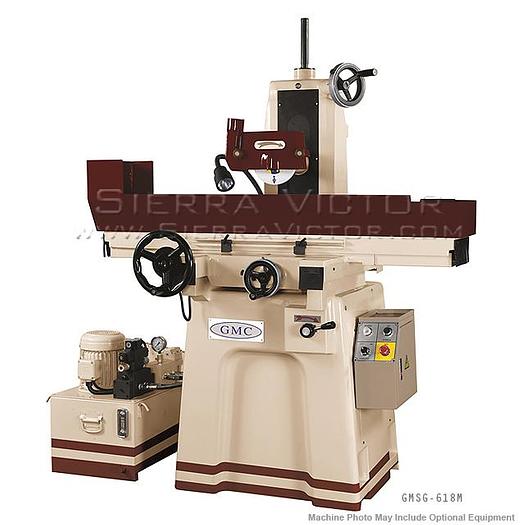

GMC Precision Manual Surface Grinder GMSG-618M

GMC Precision Manual Surface Grinder GMSG-618M

$9,950 FREE SHIPPING!

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer 6” x 18” GMC Precision Manual Surface Grinder ISO 9001 100% made in Taiwan Precision roller ball ways Heavy Duty “Meehanite” Casting Roller tracks are Turcite-B coated for long life “Turcite B” Coating on ways Double Vee on cross slide Complete coolant system included Full splash guards Over 300 pounds table load capacity Hardened & precision ground & hand scraped ways Dynamically balanced spindle run-out within 0.00008” Safety 24 low voltage electric controls & overload protection Automatic continuous lubrication for all ways & leadscrews Adjustable longitudinal table stops and cross feed lock (4) preloaded class 7 (P4) high precision angular contact spindle bearings for high precision grinding Power source: 208V / 220V/ 230V, 3 –phase ( option: 440V/460V, 3-phase ) STANDARD EQUIPMENT: Complete Coolant System with Splash Guards Halogen Work Light Installed (1) Grinding Wheel with Flange 8” Dia. x 1/2”Thick x 1-1/4” Bore Grinding Wheel Extractor Diamond Wheel Dresser with Base Balance Stand & Wheel Wrench & Balance Arbor Automatic Lubrication System Tool Box with Tools & Leveling Pads Operation and Parts Manual CALL FOR PRICE: PART # ITEM SMC-618 6” x 18” standard permanent magnetic chuck FPMC-618 6” x 18” fine pole permanent magnetic chuck DC-6818 Dust collector system for GMSG-618 & 818 NW-618M 2-Axis NEWALLC-80 DRO for GMSG-618, USA, installed PDR Parallel dresser VARI-SP Variable spindle speeds from 50 rpm to 3,600 rpm R5-618M Rotary phase converter, USA , 5 HP

Specifications

ManufacturerGMC Machine Tools
ModelGMSG-618M
ConditionNew
Stock NumberGMSG-618M
Table Size (chuck size)6" x 18"
Table Load Capacity300 lbs.
Table T-slot size9/16"
Grinding capacity, W x L6-1/4" x 18-3/4"
Max. longitudinal manual table travel18-7/8"
Max. cross manual table travel6-5/16"
Cross handwheel graduation0.001"
Cross handwheel per revolution0.2"
Vertical downfeed handwheel graduation0.0002"
Vertical downfeed handwheel per revolution0.05"
Max. spindle centerline to table surface16-1/2"
Spindle speed3,600 rpm
Spindle motor2 HP, 3-phase 230V or 460V
Coolant pump1/8 HP, 3-phase
Coolant tank capacity8 Gal.
Wheel size, Dia.x Thickness x Center Bore8" x 3/4" x 1-1/4"
Dimensions: L x W x H (in.)55 x 41 x 79
Weight1,720 lbs.
OUR PRICE$8,850.00
