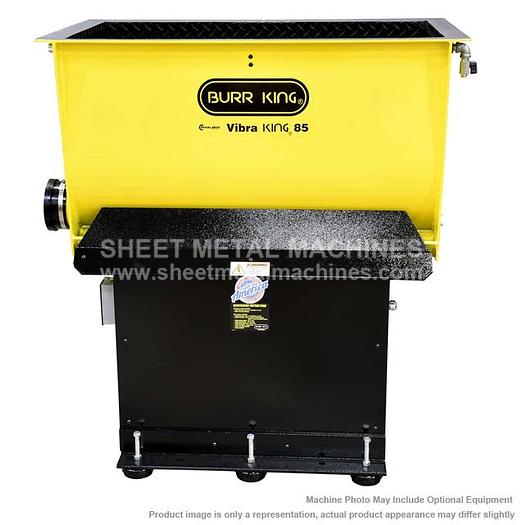

BURR KING M85 VibraKING Vibratory Chamber

BURR KING M85 VibraKING Vibratory Chamber

$13,275 : For other configurations - Please Call for Price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer 8.5 cu. ft. BURR KING VibraKING Vibratory Chamber - MADE IN USA! MADE IN USA Vibratory Chambers that deliver quiet, high performance Deburring, Polishing, Descaling and surface conditioning Optional process timers may be added to the M25, M45, and M85. These timers permit precise process timing control to manage critical finishes and economize valuable shop time. Process timers include high quality magnetic starter contactors. Capacity 2.5, 4.5 and 8.5 cubic feet Ultra quiet High energy, fast process results Patented drive and isolation Portable Integrated, metered, compound delivery system Flow-throgh design Accepts Filter PAK 4001 Replaceable drain NEMA, UL, CSA, Listed electricals Integrated process timer and/or magnetic starter option Amplitude fully adjustable Bronze caged, sealed long life bearings Rugged welded steel construction Heavy 85 duro urethane liner 5/8" thick Integrated discharge chute Compact footprint friendly to "cell" manufacturing OSHA complaint, enclosed guarding All Vibra King chambers accept one to four dividers Any Burr King tub or bowl can be used wet or dry *Includes magnetic starter (NEMA 12) and controls without power cord. ** This may vary substantially according to part shapes, material, process times, etc. NOTE: ALWAYS WEAR PROTECTIVE EYE, FACE, ARM, LEG AND BODY GEAR WHEN USING ANY GRINDER, POLISHER, BUFFER OR OTHER ROTATING MACHINERY. STANDARD EQUIPMENT: Improved replaceable drains (Models 25, 45, 85): Quick to change Minimizes drain clogging Easy to reach Extends tub life Economical Standard on all VibraKING tubs ITEM: 8.5 cu. ft. VibraKING Vibratory Chambers MANUFACTURER: BURR KING MODEL: M85

Specifications

ManufacturerBurr King
ModelM85
ConditionNew
Stock Number85103
Length max. (in.)48
Width max. (in.)36
Height max. (in.)45
Total volume cu. ft.8.5
Working volume cu. ft.7.2
Tub width, inside (in.)20
Tub length, inside (in.)37
Tub depth, inside (in.)20
Max. part length (in.)36
Media load (lbs.)450
Part load (lbs.) *450
Weight max. lbs. (empty)675
Horse power, standard3.0 (3PH)
Voltage/Phase220/3
