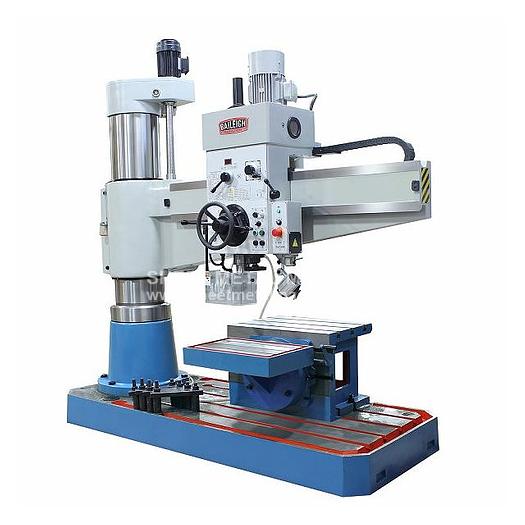

BAILEIGH RD-1600H-VS Variable Speed Radial Drill Press
BAILEIGH RD-1600H-VS Variable Speed Radial Drill Press
$32,475
Description
Please note: many products ship straight from manufacturer BAILEIGH RD-1600H-VS Variable Speed Radial Drill Press
ITEM: Variable Speed Radial Drill Press MANUFACTURER: BAILEIGH MODEL: RD-1600H-VS
RD-1600H-VS Variable Speed Radial Drill is a step above other conventional radial drills. It is suitable for medium and small parts in drilling, spot facing, counter-boring and taping etc. It is really an idea machine suitable for single work piece machining and batch production in the machining workshop, maintenance workshop and tool production workshop. Inverter driven, variable speed 38 to 2000 rpm Heavy duty, oversized spindle Integrated coolant system with easy to reach switch Hydraulic clamping for column, arm and spindle box Power down feed
Specifications
| Manufacturer | Baileigh Industrial |
| Model | RD-1600H-VS |
| Condition | New |
| Stock Number | RD-1600H-VS |
| Max. Drill Capacity | 2-1/2" (No.45 steel) & 2-7/8" (HT200 cast iron) |
| Max. Tapping Capacity | 1-3/4" (No.45 steel) & 2" (HT200 cast iron) |
| Distance from Spindle to Column Center | 13-3/4" to 63" |
| Diameter of Column | 13.7" |
| Spindle Taper | MT5 |
| Spindle Travel | 12-3/8" |
| Spindle Speed Range | 38 to 2000 rpm (variable) |
| Range of Spindle Feeds | .0024" to .0394" in/rev |
| Spindle Feeds | Inverter Driven |
| Distance Between Spindle Nose and Base | 13-3/4" to 49-1/4" |
| Table Size | 24.8" x 19.6" x 19.6" |
| Base Size | 94.4" x 39.3" x 7.8 |
| Overall Size | 98” x 40”~96” x 103”~112” Accounting for Beam Movements |
| Travel Speed | 47.2 in/min. (arm movement) |
| Motor | 5.25 HP |
| Power | 220V, 3-phase |
| Shipping Dimensions | 102.375” x 44” x 100” |
| Shipping Weight | 9,460 lbs. |
