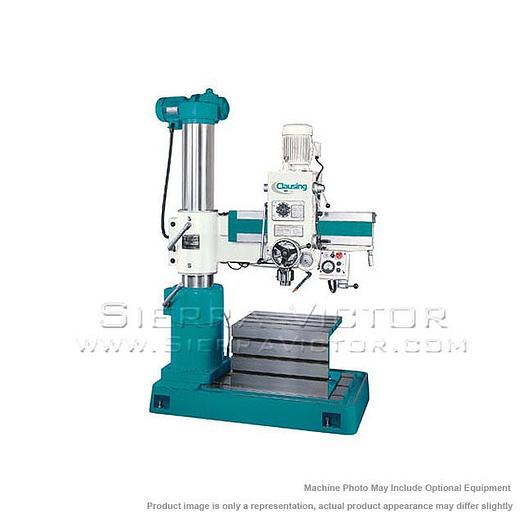

CLAUSING Radial Drill CL820A

CLAUSING Radial Drill CL820A

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer CLAUSING Radial Drill CL820A ITEM: 33" Radial Drill MANUFACTURER: CLAUSING MODEL: CL820A Limit switch High speed gears are made of Nickel-Chrome Steel and are heat-treated and ground for durability Powerful 2 Hp spindle drive motor for heavy-duty cutting Extra auxiliary dial for spindle feed depth indication, allows review of spindle feed depth, .0394" to 7.874" Special spindle balance mechanism, superior to traditional balance mechanism and extends Balance Spring life Coolant system Low volt and overload protection CSA Electrics Standard Tool kit and manuals PART # ITEM CLS100 Large Tilt Table, 32X28X24 (CLS) CLS101 Small Tilt Table, 20X20X23 (CLS) CLS102 Extra Box Table, 39.3 x 31.5 x 19.6 (1 std on 2000H) CLS102A Extra Box Table, 23.6 x 17.5 x 14.9 (1 std on 720A - 920A) CLS102B Extra Box Table, 24.8 x 20.4 x 16.3 (1 std on 1100,1230H,1250H) CLS102C Extra Box Table, 24.8 x 19.6 x 19.6 (1 std on CLC1600H) CLS102D Extra Box Table, 27.5 x 19.6 x 15.7 (1 std on CL1600H) CLS102E Extra Box Table, 39.3 x 31.5 x 22 (1 std on 2500H) CLS-CE1 CE Electrics w/Spindle Guarding CL720-1230H CLS-CE2 CE Electrics w/Spindle Guarding CLC1250H&1600H CLS-CE3 CE Electrics w/Spindle Guarding CL1600H -2500 CLS-CSA1 CSA\UL Electrics CL720-920 CLS-CSA2 CSA\UL Electrics CL1100-1230H CLS-CSA3 CSA\UL Electrics CLC1250H-1600H CLS-CSA4 CSA\UL Electrics CL1600-2000 CLS-CSA5 CSA\UL Electrics CL2500 CLS-7 7.5Hp Main Spdl Mtr Upgrade CLC1600H (fac inst) CLS-10 10Hp Main Spdl Mtr Upgrade CL1600&2000 (fac inst) CLS-200 Auto Reverse Tapping Feature 4MT (factory installed) (not available on CLC2500) Cannot use with SPDL guard options CLS-200A Auto Reverse Tapping Feature 5MT (factory installed) (not available on CLC2500) Cannot use with SPDL guard options

Specifications

ManufacturerClausing
ModelCL820A
ConditionNew
Stock NumberCL820A
Drilling In Cast Iron2" (50mm)
Tapping In Steel1" (25mm)
Tapping In Cast Iron1.26" (32mm)
Boring In Steel2.75" (70mm)
Boring In Cast Iron4.06" (105mm)
Minimum (D)8.7" (220mm)
Spindle Head Travel (C)24.8" (630mm)
Minimum (B)13.8" (350mm)
Arm Vertical Travel (A-B)25.2" (640mm)
Arm Rotation (Right & Left)180°
Baseplate Working Surface35.5" x 25.3" (902x643mm)
Width (K)17.5" (445mm)
Height (H)15" (380mm)
Height (Q)6.5" (160mm)
Spindle Stroke8.66" (220mm)
Quill Diameter2.95" (75mm)
Number of Spindle Speeds6
Spindle Speeds (rpm)88, 154, 282, 455, 796, 1500
Number of Feeds3
Spindle Feed Rate (in/rev.)0.002"/0.0035"/0.006"
(mm/rev.).05mm/.09mm/.15mm
Spindle Drive Motor2 hp (1.5 Kw)
Elevating Motor1 hp (.75 Kw)
Coolant Pump Motor1/8 hp (.10 Kw)
Base and Column Height (G)79.1" (2010mm)
Shipping Dimensions (L x W x H)66.1" (1680mm) 32.5" (826mm) 86.2" (2190mm)
Net Weight2,645 lbs. (1200kg)
Shipping Weight2,954 lbs. (1340kg)
