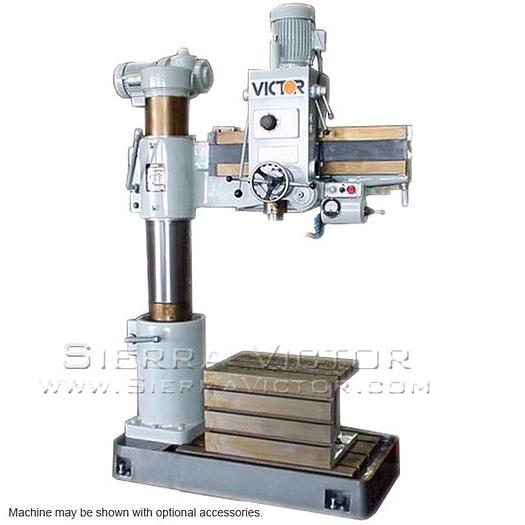

VICTOR Radial Drill 829

VICTOR Radial Drill 829
Contact us for price
Description
Please note: many products ship straight from manufacturer VICTOR 37" Radial Drill 837
- Power elevating motor arm with an anti-fall safety device
- Hardened and precision ground arm ways
- High speed gears are made of Nickel-Chrome steel and through the heat treatment process and precision grinding
- Extra auxiliary dial for spindle feed depth indication to review the momental feed depth of spindle
- Special mechanism for spindle balance to avoid the defect on breaking of balance spring
- Manual clamping of column, arm, and head
- Built-in work light
- Built-in coolant system
STANDARD ACCESSORIES:
- Plain box table
- Work light
- Coolant system
Design and Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
Manufacturer | Victor |
Model | 829 |
Condition | New |
Stock Number | 829 |
Diameter of column | 8.25" |
Max distance from column to spindle | 29.50" |
Min distance from column to spindle | 8.625" |
Travel of spindle head | 20.875" |
Max distance from base to spindle end | 41.75" |
Min distance from base to spindle end | 9.625" |
Elevating height of arm | 23.81" |
Effective area of table | 23-7/16” x 17-23/32” x 14-31/32" |
Dimensions of base | 49-5/8” x 25-3/16” x 6-9/32" |
Drilling capacity steel | 1.25" |
Drilling capacity cast iron | 1.97" |
Tapping steel | 0.875" |
Tapping cast iron | 0.875" |
Boring capacity (steel): | 2.75" |
Boring capacity (cast iron): | 4.17" |
Taper hole sppindle | MT #4 |
Stroke of spindle | 8.25" |
Spindle speeds (rpm x steps) | 88, 154, 282, 455, 796, 1500 x 6 steps |
Spindle feeds (rev. x steps) | 0.002”, 0.0035”, 0.0059” x 3 steps |
Main motor | 2 HP, 3 phase |
Elevating motor | 1 HP |
Clamping motor | — |
Coolant pump | 1/8 HP |
Machine height from floor | 85-7/16" |
Shipping Dimensions | 64" x 32" x 82" |
Net Weight | 2,530 lbs. |
Shipping Weight | 2,806 lbs. |
