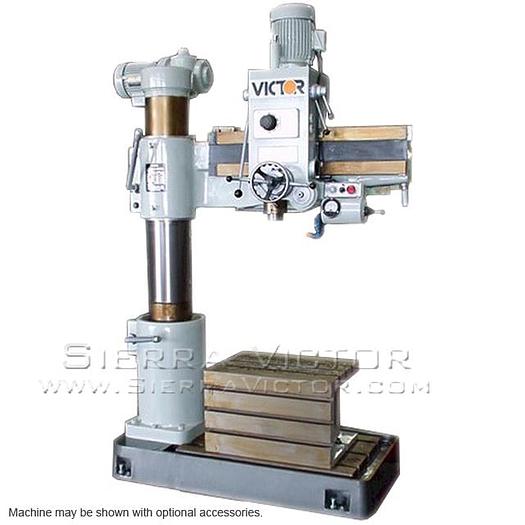

VICTOR Radial Drill 837

VICTOR Radial Drill 837

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer ITEM: 37" Radial Drill MANUFACTURER: VICTOR MODEL: 837

Specifications

ManufacturerVictor
Model837
ConditionNew
Stock Number837
Diameter of column8.25"
Max distance from column to spindle37.40"
Min distance from column to spindle8.625"
Travel of spindle head28.75"
Max distance from base to spindle end47.625"
Min distance from base to spindle end13.75"
Elevating height of arm25.56"
Effective area of table23-7/16” x 17-23/32” x 14-31/32"
Dimensions of base49-5/8” x 25-3/16” x 6-9/32"
Drilling capacity steel1.25"
Drilling capacity cast iron1.97"
Tapping steel0.875"
Tapping cast iron0.875"
Boring capacity (steel):2.75"
Boring capacity (cast iron):4.17"
Taper hole sppindleMT #4
Stroke of spindle8.25"
Spindle speeds (rpm x steps)88, 154, 282, 455, 796, 1500 x 6 steps
Spindle feeds (rev. x steps)0.002”, 0.0035”, 0.0059” x 3 steps
Main motor2 HP, 3 phase
Elevating motor1 HP
Clamping motor
Coolant pump1/8 HP
Machine height from floor91.38"
Shipping Dimensions71" x 33" x 86"
Net Weight2,860 lbs.
Shipping Weight3,190 lbs.
