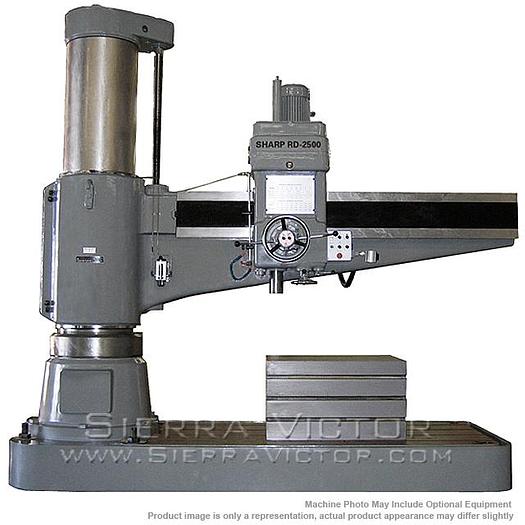

SHARP Radial Drill RD-2500

SHARP Radial Drill RD-2500

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer SHARP Radial Drill RD-2500 Sharp radial drills are excellent machines for tapping, drilling and boring large holes on cast iron or steel material. The traveling arm is made with hardened and ground slide ways for precise movement of head and spindle. The vertical column utilizes double tube design for rigidity. The spindle is equipped with depth setting. The Sharp heavy duty Radial Drilling Machines are designed for a wide range of machining operations to be used under the most demanding conditions. All major castings are made of closed grained full ribbed iron to give maximum stability under stress. The headstock gears are made of hardened and ground nickel-chrome alloy steel. The arm is mounted with ground slideways and operated by electric control. It has a safety device that will prevent the arm from dropping due to unforseen reasons. The rigidly ribbed casting base is provided with T-slots and drain channels. The spindle is designed for maximum speed, feed rate and depth. STANDARD EQUIPMENT: Hardened and Ground Arm Slideways Arm Elevation is controlled by Electric Motor Safety Device prevents arm from dropping T-Slots and Drain Channels on casting Hardened and Ground Gears Box table Coolant system Work light Toolbox Wired 220V or 440V ITEM: 98" Radial Drill MANUFACTURER: SHARP MODEL: RD-2500 Tilting table

Specifications

ManufacturerSharp
ModelRD-2500
ConditionNew
Stock NumberRD-2500
Diameter of column21.65"
Dist. column to spindle19.7"-98.4"
Travel of spindle head78.74"
Dist. Spindle to base21.7"-79"
Elevating height of arm39.37"
Effective area of table39.3" x 31.5" x 22"
Dimensions of base138.6" x 55.12" x 12.6"
Taper hole in spindleMT#6
Stoke of spindle17.72"
Spindle (rpm range x steps)16-1250 x 16
Spindle feed (ipr x steps)0.04", 3.20" x 16
Main motor (HP)10 HP
Elevating motor (HP)5 HP
Coolant Equipment (HP)1/4 HP
Machine height from floor151.57" - 157.09"
Measurement (LxWxH)157.48 x 63" x 151.57"
Net weight (lbs)24,200
Approximate shipping weight (lbs)27,500
Capacity Drilling Steel3.15"
Capacity Drilling Cast Iron3.94"
Capacity Tapping Steel2.56"
Capacity Tapping Cast Iron2.95"
