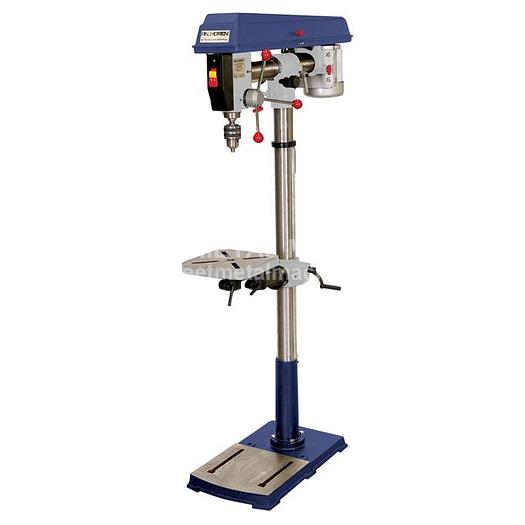

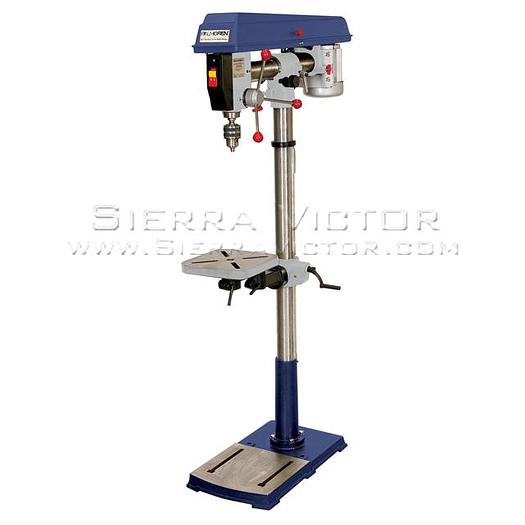

PALMGREN Floor Type Radial Arm Drill Press 9680342

PALMGREN Floor Type Radial Arm Drill Press 9680342

$530.35

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer PALMGREN Floor Type Radial Arm Drill Press 9680342 Palmgren’s radial arm drill presses have an extended reach, tilting drill head that is ideal for large or odd-shaped work pieces. The table tilts 45° left or right allowing easy machining of holes at almost any angle.

STANDARD EQUIPMENT: Durable cast iron head, table & base Spindle supported by high quality ball bearings Rack and pinion table raiser Table tilts 45° right & left and swivels 360° around the column 1/2˝ through table & base slots for easy mounting and clamping of workpiece Front mounted safety, paddle on/off switch Drill chuck & key

Specifications

ManufacturerPALMGREN
Model9680342
ConditionNew
Stock Number9680342
Swing9" - 33"
Motor1/2
Voltage115
Amps AC4.8
Capacity Cast Iron5/8"
Spindle Speeds5
RPM575-3520
Spindle TaperMT2
Spindle Travel3-5/32"
Spindle to Table30"
Table Work Surface10-3/8" x 10-3/8"
Table Slots1/2"
Height65"
Width14"
Depth33"
Weight150 lbs.
