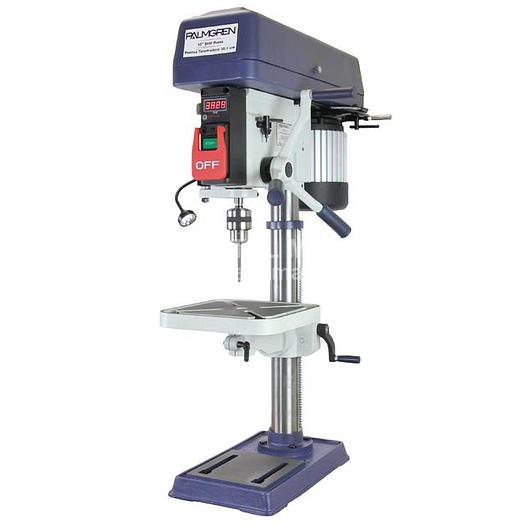

PALMGREN Heavy Duty 16-Speed Bench Model Drill Press 9680157

PALMGREN Heavy Duty 16-Speed Bench Model Drill Press 9680157

$1,028

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer PALMGREN Heavy Duty 16-Speed Bench Model Drill Press 9680157 These drill presses have the weight and rigidity to maintain the built-in tight tolerances required for metalworking applications. The oversized, massive drill heads have widely spaced bearing surfaces that provide full quill support throughout its travel. A wider range of operation speeds for drilling both large and small holes. Fully enclosed spindle for accurate drilling operations Maximum spindle run out of 0.0005" Extended quill/spindle travel ideal for deep hole applications LED readout of spindle speed Rack and pinion table raiser Precision ground t-slotted work table with coolant trough Table tilts 45° right and left and rotates 360° around the column Quick change vertical depth stop for accurate, repeatable feed length Heavy cast metal 3 spoke quill feed handle with ergonomic speed feed handle Front mounted industrial paddle-type power switch Includes chuck with key and arbor ITEM: 15" Heavy Duty 16-Speed Bench Model Drill Press MANUFACTURER: PALMGREN PART# 9680157

Specifications

ManufacturerPALMGREN
Model9680157
ConditionNew
Stock Number9680157
Swing15"
Motor1/2 HP
Voltage120/240
Amps AC7.3/3.7 A
Capacity Cast Iron5/8"
Spindle Speeds16
RPM138-3476
Spindle TaperMT2
Spindle Travel5"
Spindle to Table11"
Table Work Surface11-1/2" x 11-1/2"
Table Slots5/8"
Height43"
Width13-1/2"
Depth27"
