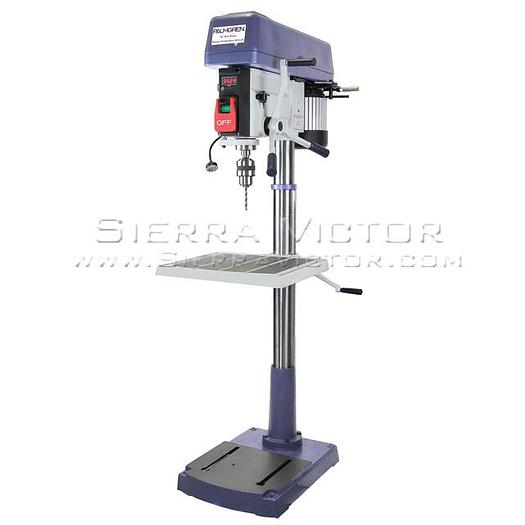

PALMGREN 16-Speed Floor Step Pulley Drill Press (3 PH) 9680210

PALMGREN 16-Speed Floor Step Pulley Drill Press (3 PH) 9680210

$1,673

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer PALMGREN 16-Speed Floor Step Pulley Drill Press (3 PH) 9680210 ITEM: 20" 16-Speed Floor Step Pulley Drill Press MANUFACTURER: PALMGREN PART# 9680210 Palmgren’s heavy duty 16-speed drill presses are designed and built for drilling a wide array of materials. They have the weight and rigidity to maintain the built-in tight tolerances required for metalworking applications. The oversized, massive drill heads have widely spaced bearing surfaces that provide full quill support throughout its travel. A wider range of operation speeds for drilling both large and small holes. Fully enclosed spindle for accurate drilling operations Maximum spindle run out of 0.0005" Extended quill/spindle travel ideal for deep hole applications LED readout of spindle speed and quill travel Rack and pinion table raiser Precision ground t-slotted work table with coolant trough Table tilts 45° right and left and rotates 360° around the column Quick change vertical depth stop for accurate, repeatable feed length Heavy cast metal 3 spoke quill feed handle with ergonomic speed feed handle Front mounted industrial paddle type power switch Includes chuck with key and arbor 20" Drill Press available in Single Phase Model 9680209

Specifications

ManufacturerPALMGREN
Model9680210
ConditionNew
Stock Number9680210
Swing20"
Capacity Cast Iron9/16"
Spindle TaperMT3
Spindle Travel5"
Spindle to Table16-3/8"
Table Work Surface19-1/4" x 18-3/4"
Table Slots5/8"
Spindle Speeds16
RPM120-3605
Motor HP1-1/2 HP
Voltage240, 3 PH
Amps5 A
Height70"
Width16"
Depth30"
