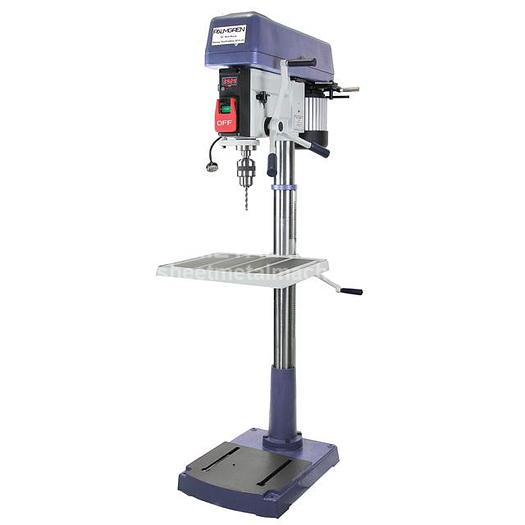

PALMGREN 16-Speed Floor Step Pulley Drill Press (1 PH) 9680209

PALMGREN 16-Speed Floor Step Pulley Drill Press (1 PH) 9680209

$1,666

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer PALMGREN 16-Speed Floor Step Pulley Drill Press (1 PH) 9680209 ITEM: 20" 16-Speed Floor Step Pulley Drill Press MANUFACTURER: PALMGREN PART# 9680209 Palmgren’s heavy duty 16-speed drill presses are designed and built for drilling a wide array of materials. They have the weight and rigidity to maintain the built-in tight tolerances required for metalworking applications. The oversized, massive drill heads have widely spaced bearing surfaces that provide full quill support throughout its travel. A wider range of operation speeds for drilling both large and small holes. Fully enclosed spindle for accurate drilling operations Maximum spindle run out of 0.0005" Extended quill/spindle travel ideal for deep hole applications LED readout of spindle speed and quill travel Rack and pinion table raiser Precision ground t-slotted work table with coolant trough Table tilts 45° right and left and rotates 360° around the column Quick change vertical depth stop for accurate, repeatable feed length Heavy cast metal 3 spoke quill feed handle with ergonomic speed feed handle Front mounted industrial paddle type power switch Includes chuck with key and arbor 20" Drill Press available in 3 Phase Model 9680210

Specifications

ManufacturerPALMGREN
Model9680209
ConditionNew
Stock Number9680209
Swing20"
Capacity Cast Iron9/16"
Spindle TaperMT3
Spindle Travel5"
Spindle to Table16-3/8"
Table Work Surface19-1/4" x 18-3/4"
Table Slots5/8"
Spindle Speeds16
RPM120-3605
Motor HP1-1/2 HP
Voltage120/240
Amps10/5 A
Height70"
Width16"
Depth30"
