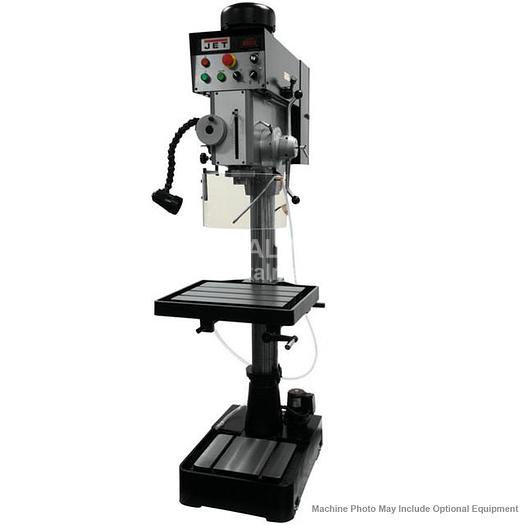

JET JDP20EVST-230-PDF EVS Gear Head Drill Press w/Powerfeed 230V JT9-354245

JET JDP20EVST-230-PDF EVS Gear Head Drill Press w/Powerfeed 230V JT9-354245


orCall 386-304-3720


Please note: many products ship straight from manufacturer JET JDP-20EVST-230-PDF, 20 inch EVS Geared Head Drill Press with Tapping & Power Downfeed 230V, JT9-354245 Steel Column prevents column failures prolonging the life of the machine Heavy Duty casted head for more accuracy and rigidity Large Precision Ground T-slot Production Table for easy set ups Latest AC Inverter Variable Speed Technology CSA Certified Coolant System Spindle is supported by high quality ball bearings CSA/CUS: Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certified LED Machine Lamp delivers extra light for more precise drilling Spindle Guard protects user from flying debris Spindle is supported by high quality ball bearings 3-Speed Power Downfeed Variable Spindle Speeds from 65 -2,000 RPM's High Torque at all speeds both forward and reverse Continuous Speed Adjustment while in operation Front Mounted LED Spindle RPM Readout Forward and Reverse for Tapping Front Mounted Positive Control Depth Stop Large Hand Grips designed with the users comfort in mind

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.



Stock NumberJT9-354245
Drills to Center of Circle20"
Drilling Capacity Cast Iron2-5/32"
Drilling Capacity Mild Steel2"
Tapping Capacity Cast Iron1"
Tapping Capacity Mild Steel1"
Distance Column to Spindle10-7/16"
Number of Spindle SpeedsVariable
Range of Spindle Speeds (RPM)60-2,000 (60-540/225-2000)
Quill Down Feed Rates (IPR).0078-.0039 -.0019
Column Diameter4-1/2"
Spindle Taper (In. x TPI)MT-4
Spindle Travel6"
Spindle Distance to Base44.68"
Spindle Distance to Table (Max.)25.5"
Table Size (L x W)22" x18-3/4"
Table Working Area (L x W)18-1/8" x 14-3/4"
Table Travel20"
T-Slots Number and Size3" & 5/8"
T-Slot Centers7-7/16
Work Table Weight Capacity154 lbs.
Base Dimensions27" x 19"
Base Work Area14-3/4" x 11-13/16"
Base Slots Number & Size2" & 5/8"
Motor2 HP, 230V, 3ph
InverterB Type 230V, 1/3Ph
Overall Dimensions (L x W x H)
Weight847 lbs.
