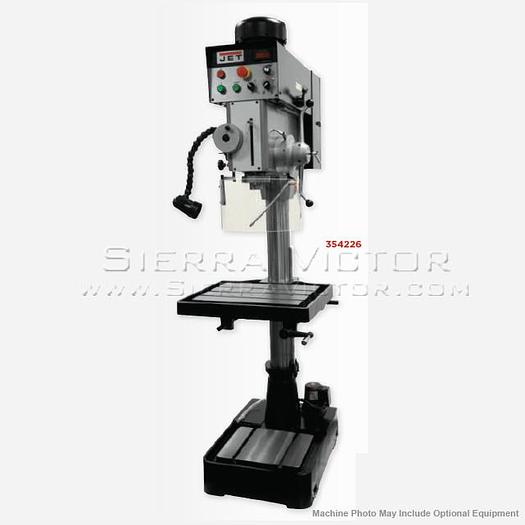

JET JDP-20EVST-460 EVS Drill Press with Tapping 354226

JET JDP-20EVST-460 EVS Drill Press with Tapping 354226

$5,039

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET JDP-20EVST-460 20" EVS DRILL PRESS TAPPING, 354226 JET Electronic Variable Speed Drill Presses offer spindle speed rates between 65 and 2000 RPM for a wide variety of applications. Designed to permit continuous speed adjustment - even during operation. Tapping capability, an emergency stop and a heavy-duty casted head are but a few of the features JET includes to enhance overall use and accuracy. Heavy-duty steel column for increased precision and rigidity Heavy Duty casted head for more accuracy and rigidity Large Precision Ground T-slot Production Table for easy set ups Latest AC Inverter Variable Speed Technology CSA Coolant System Spindle is supported by high quality ball bearings CSA/CUS: Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certified LED Machine Lamp Spindle Guard Emergency Stop Spindle is supported by high quality ball bearings Variable Spindle Speeds from 65 - 2,000 RPM's High Torque at all speeds both forward and reverse Continuous Speed Adjustment while in operation Front Mounted LED Spindle RPM Readout Forward and Reverse for Tapping Front Mounted Postitive Control Depth Stop Large Hand Grips designed with the Users comfort in mind ITEM: 20" EVS Metalworking Tapping Drill Press MANUFACTURER: JET MODEL: JDP-20EVST-460 PART# 354226

Specifications

ManufacturerJet
ModelJDP-20EVST-460
ConditionNew
Stock Number354226
Drills to Center of Circle20"
Drilling Capacity Cast Iron1-1/2"
Drilling Capacity Mild Steel1-3/8"
Tapping Capacity Cast Iron7/8"
Tapping Capacity Mild Steel3/4"
Distance Column to Spindle10-7/16"
Number of Spindle SpeedsVariable
Range of Spindle Speeds (RPM)65-540 /245- 2,000
Column Diameter4-1/2"
Spindle Taper (In. x TPI)MT-3
Spindle Travel6"
Spindle Distance to Base44-1/2"
Spindle Distance to Table (Max.)30-1/4"
Table Size (L x W)22" x18-3/4"
Table Travel20"
T-Slots Number and Size3" & 5/8"
T-Slot Centers7-7/16"
Work Table Weight Capacity154 lbs.
Base Dimensions27" x 19"
Base Slots Number & Size2" & 5/8"
Motor2 HP, 460V 3ph
InverterM Type 460V, 1/3Ph
Overall Dimensions (L x W x H)38.18" x 27.16" x 79.52"
Weight792 lbs.
