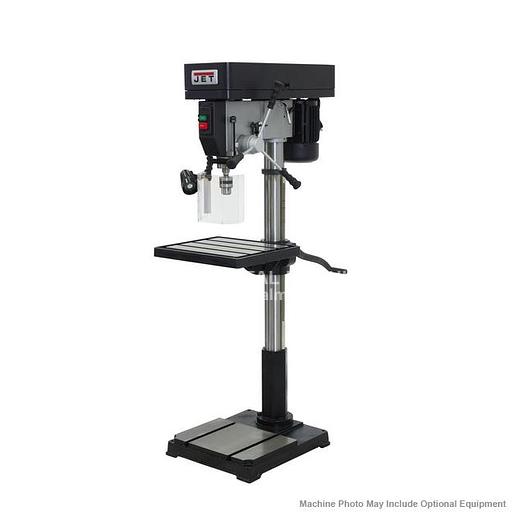

JET IDP-22 Industrial Floor Model Drill Press 354301

JET IDP-22 Industrial Floor Model Drill Press 354301


orCall 386-304-3720


Please note: many products ship straight from manufacturer JET IDP-22, 22" Industrial Floor Model Drill Press, 354301 CSA/CUS: Following strict guidelines and electrical requirements, these JET Drill Presses are CSA/CUS certified. LED Machine Lamp Spindle Guard On/off switch located on front of the drill press head Spindle is supported by high quality ball bearings Heavy Duty construction Cast iron table and base Table Ground for Accuracy Large Hand Grips designed with the users comfort in mind Hinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speeds Rotating, 45° tilting, crank-operated worktable with quick release clamp A 1/2" diameter external positive depth stop with three nut locking feature for quick adjustment Adjustable tension spindle return spring Drill chuck and key attach to the side of the drill press always within reach of the operator

STANDARD EQUIPMENT: Ground Table Spindle Safety Guard Halogen Machine Lamp Drill Chuck and Key

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.



Stock Number354301
Drills to Center of Circle - Swing (in)21-7/8
Drilling Capacity Cast Iron (in.)1-1/4
Drilling Capacity Mild Steel (in.)1
Column Diameter (in.)3-5/8
Distance Column to Spindle (in.)10-7/8
Number of Spindle speeds12
Range of Spindle Speeds (RPM)175-3,050
Spindle Travel (in.)4-13/16
Spindle Distance to Base (in.)48-1/2
Distance Spindle to Table (max./in.)28
Spindle TaperMT-3
Quill Diameter (in.)2-5/8
Chuck Size (in.)5/8
Table Size (in.)18-5/8 x 16-1/8
T-Slots Number and Size (in)5/8" & 3
T-Slot Centers (in.)3/4
Work Table Weight Capacity (lbs.)176
Base Work Table area (in.)21-1/2 x 18-5/16
Base Slots Number & Size (in.)5/8" & 2
Base Dimensions (LxWxH/ in.)22-5/8 x 19-7/16 x 3-3/8
Motor1-1/2 HP, 115/230V, 1Ph
Net Weight319 lbs.
Gross Weight364 lbs.
