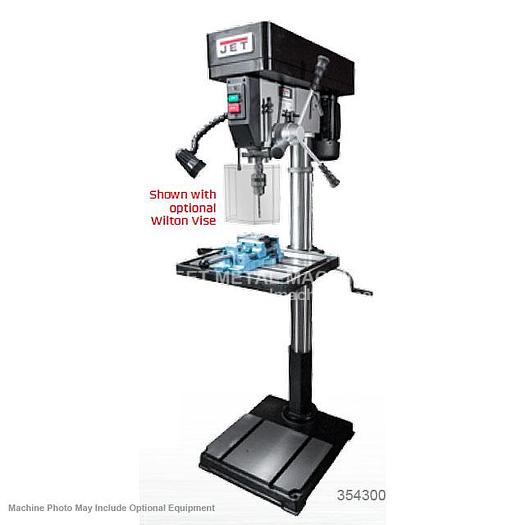

JET IDP-17 Industrial Floor Model Drill Press 354300

JET IDP-17 Industrial Floor Model Drill Press 354300

$1,599

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET IDP-17, 17" Industrial Floor Model Drill Press, 354300 CSA/CUS: Following strict guidelines and electrical requirements, these JET Drill Presses are CSA/CUS certified. LED Machine Lamp Spindle Guard On/off switch located on front of the drill press head Spindle is supported by high quality ball bearings Heavy Duty construction Cast iron table and base Table Ground for Accuracy Large Hand Grips designed with the users comfort in mind Hinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speeds Rotating, 45° tilting, crank-operated worktable with quick release clamp A 1/2" diameter external positive depth stop with three nut locking feature for quick adjustment Adjustable tension spindle return spring Drill chuck and key attach to the side of the drill press always within reach of the operator STANDARD EQUIPMENT: Ground Table Spindle Safety Guard Halogen Machine Lamp Drill Chuck and Key ITEM: 17" Industrial Belt Drill Press MANUFACTURER: JET MODEL: IDP-17 PART# 354300

Specifications

ManufacturerJet
ModelIDP-17
ConditionNew
Stock Number354300
Drills to Center of Circle - Swing (in)16-7/8
Drilling Capacity Cast Iron (in.)3/4
Drilling Capacity Mild Steel (in.)5/8
Column Diameter (in.)3-1/8
Distance Column to Spindle (in.)8-3/8
Number of Spindle speeds12
Range of Spindle Speeds (RPM)350-2,800
Spindle Travel (in.)3-5/16
Spindle Distance to Base (in.)50
Distance Spindle to Table (max./in.)30-1/2
Spindle TaperMT-2
Quill Diameter (in.)2-1/6
Chuck Size (in.)5/8
Table Size (in.)14 x 14
T-Slots Number and Size (in)1/2" & 2
T-Slot Centers (in.)9/16
Work Table Weight Capacity (lbs.)110
Base Work Table area (in.)16-15/16 x 10-13/16
Base Slots Number & Size (in.)1/2"& 2
Base Dimensions (LxWxH/ in.)21-3/4 x 13-3/4 x 2-3/16
Motor1HP, 115/230V, 1Ph
Prewired115V
Net Weight231 lbs.
Gross Weight260 lbs.
