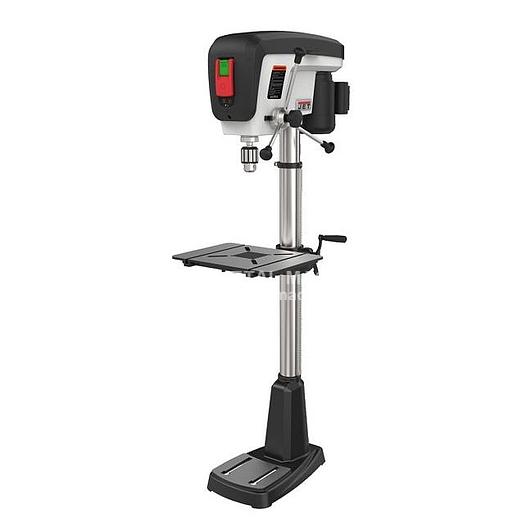

JET JDP-15F Floorstanding Drill Press 716250


JET JDP-15F Floorstanding Drill Press 716250



Please note: many products ship straight from manufacturer JET 15" Floorstanding Drill Press JDP-15F, 716250 AVAILABLE MAY 2016 - the new JET JDP-15F, 15” Floorstanding Drill Press. From a full 3-1/8” of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a one-handed belt-tensioning system and a large 12-1/2" x 17" work table. Spindle travels a full 3-1/8” with one revolution of the handle Large 12-1/2" x 17" precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project One-handed belt tensioning allows for rapid speed changes Power switch features a safety key and large, paddle-style off button Integrated depth stop makes repetitive drilling quick and easy Xacta-X laser system easily identifies the drill center Long-lasting, built-in LED work light reduces shadows Table edge lip designed to make clamping easy Replaceable MDF table insert Large cast iron base provides stability Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system CSA Certified


Stock Number716250
Style (Type)Floorstanding Model
Spindle Travel3-1/8"
Spindle TaperMT2/JT3
Number of Spindle Speeds16
Spindle Speed Range (RPM)210 - 3500
Spindle Distance to Table (Max.)30-1/2"
Table Size (L x W)12-1/2" x 17"
Table Tilt (Deg.)45 Left and Right
Chuck Size5/8"
Column Diameter2-3/4"
Base Size18-7/8" x 11-3/8"
Motor Power (HP)3/4
Motor Phase (PH)1
Motor Voltage (V.)115
Prewired Voltage (V.)115 only
Motor Amps9
Weight (Lbs.)172
