BAILEIGH Floor Drill Press 220V DP-2012F-HD-V3


BAILEIGH Floor Drill Press 220V DP-2012F-HD-V3

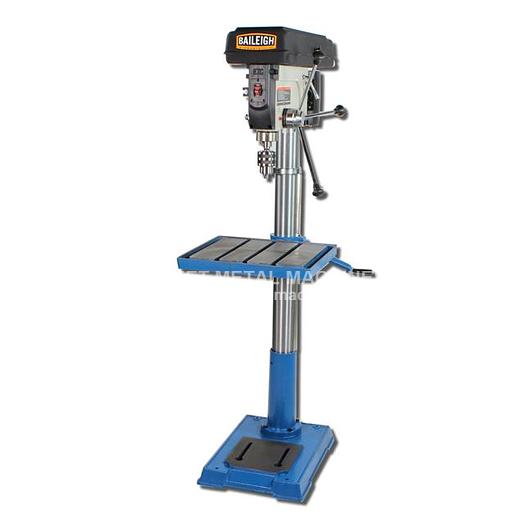

Please note: many products ship straight from manufacturer BAILEIGH 20" Floor Drill Press 220V 1PH DP-2012F-HD-V3 Need more capacity from your drill press, well look at the DP-2012F-HD-V3 floor drill press to see if it will fit your needs. This mammoth has a 20” swing and a cast iron 16.5"x 18.5" oversized table and can handle just about anything that you can throw at it. The 3.6” diameter column and 24” x 16.5” cast iron base make for one rigid structure. The DP-2012F-HD-V3 uses 220 volt single phase power to turn its MT4 spindle to 3200 rpms. The range of speeds is done through the use of six pulleys that give the DP-2012F-HD-V3 12 spindle speeds. It also includes a drill chuck that can opens to a maximum of ¾”.


ManufacturerBaileigh Industrial
Stock NumberDP-2012F-HD-V3
Spindle Speeds12 - 220 to 3200 rpm
Distance from Spindle to Table26"
Distance from Spindle to Base46.75"
Table Size (Length)16.5"
Table Size (Width)18.5"
Drill Capacity1.25"
Spindle Travel4.75"
Drill Chuck Capacity1/32" - 5/8” (JT3 key)
T-Slot Size3 @ 5/8"
Power220V Single Phase
Horse Power2 HP
Weight259 lbs.
Shipping Weight390 lbs.
Shipping Dimensions (Inches)69" x 44" x 24"
