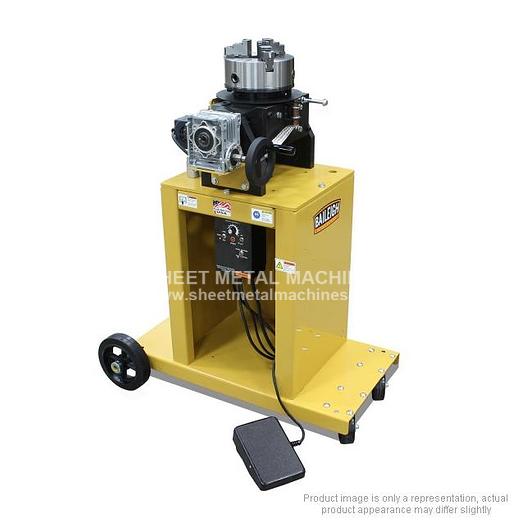

BAILEIGH WP-1800F Welding Positioner

BAILEIGH WP-1800F Welding Positioner


orCall 386-304-3720


Please note: many products ship straight from manufacturer BAILEIGH WP-1800F Welding Positioner Ever wish you had a third or even fourth hand when trying to weld something? Or possible having to weld around a pipe only to have the cable wrapped around the project because instead of the material spinning you went around the material? If you answered yes, then you need a welding positioner like the WP-1800 from Baileigh Industrial. The WP-1800 is a must for precision welding of round tubing, pipe, or solids. Unlike other positioners on the market, the WP-1800 was designed with user comfort in mind. The rotational chuck is mounted on a portable cart and places the work piece at perfect sitting height to relieve stress and fatigue. The chuck operates of 110 volts of power and is variable speed. Speed can be adjusted from 0 to 6 rpm with the use of the foot pedal or possibly be locked in at a set speed from the control panel. The WP-1800 is also a self contained welding positioner that can be taken to a job site with no external grounding necessary. Just put your ground clamp on the ground peg, plug in the machine to power source and turn it on. Variable speed AC motor with foot pedal control offers hands free operation while welding, grinding, or brazing. Speed is 0-6 RPM

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.



ManufacturerBaileigh Industrial
Stock NumberWP-1800F
Country of ManufactureUnited States
Speed0 – 6 rpm (Variable)
Thru Hole OD2-3/8"
Chuck Capacity1/4" OD/10-3/4" ID
Chuck Size Three Jaw8"
Maximum Current300 Amps
DriveAutomatic / Manual
Shipping Dimensions (L/W/H)60" x 44" x 68"
Shipping Weight350 lbs
