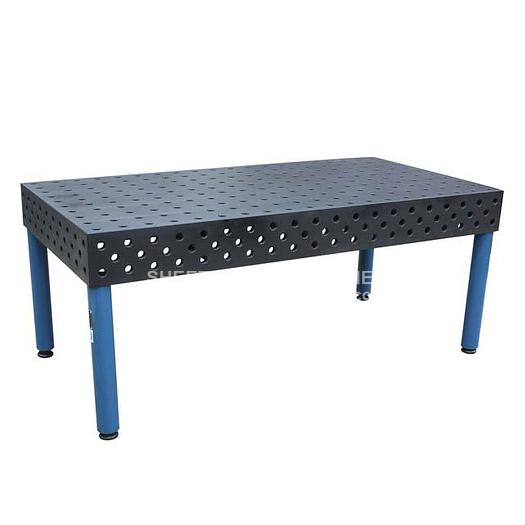

BAILEIGH WJT-7839-HD Welding Table

BAILEIGH WJT-7839-HD Welding Table


orCall 386-304-3720


Please note: many products ship straight from manufacturer BAILEIGH 78" x 39" WJT-7839-HD Welding Table Made from 250 Cast iron the WJT-7839-HD welding jig table from Baileigh Industrial is made to withstand the rigors of any shop. All of Baileigh Industrial's welding tables are made to exact tolerances and maintain flatness of +/- .0025" and have a hardness rating of 140 to 160 Brinell. The WJT-7839-HD Welding Jig Table has a table size of 78" x 39" and has a total of 5 mourning surfaces that use Industry standard 28mm holes that are spaced at 100mm to ensure the most options with the strongest holding power. For more information about our welding tables, contact a Baileigh representative. 78” x 39” table Made from 250 Cast Iron with nitride coating Brinell Hardness 140~160 5 Mounting Surfaces Expandable 2 ton weight capacity Industry Standard 28mm Mounting holes 100mm hole spacing Etched Position Marks Includes table Oiler, Brush and cleaning stone

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.



ManufacturerBaileigh Industrial
Stock NumberWJT-7839-HD
Working Table Size78" x 39"
Table Load Capacity2 Tons
Table Height33.5"
Table Flatness+/- .0025"
Number of Mounting Surfaces5
Mounting Hole Size28mm
Mounting Hole Spacing100mm
Dimensions L x W x H80" x 45" x 45"
Shipping Weight1,540 lbs.
