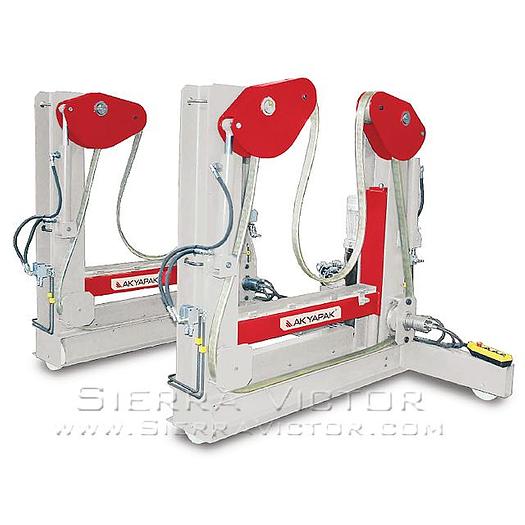

AKYAPAK HR-10000 Rope Rotator

AKYAPAK HR-10000 Rope Rotator


orCall 386-304-3720


Please note: many products ship straight from manufacturer AKYAPAK HR-10000 Rope Rotator Purpose of Rope Rotators is rotating and positioning pieces with planar section. Required welding edge can be created by realizing positioning according to the rotated part on an endless rope. It is possible to adjust the height of the piece placed on the machine. This provides convenience to the operator during welding. The product comprises of housing, rope drive systems, electrical panel and remote controlled operator unit and rovides the best structural protection. Measures have been taken against the carrier with a lift rope break. Even if bobbin carrier part of the elevator rope overlaps. The operator or the machine will not damage any area. Operators can rotate the pieces mounted on the rope clockwise or counterclockwise, precisely, well-aligned and easily. They can also be moved downward – upward to provide the desired height. Rope rotator set comprises of 2 driven units. Number of units can be increased according to the application and weight conditions. Both of the units which constitute the rope rotator set are driven and these two unit can be operated in synchronization or independently. Thus, angular height adjustment of the work piece is enabled. NOTE: Rope Rotator is a machine build with two units. One units weight is half of the total weight at table. Model HR-10000 has no wheels, model HR-2500 has wheels (idle) to move on the ground.

STANDARD EQUIPMENT: Remote controller with 5 meter cable length Rope arms angle settings (hydraulic) Safety platform for beam carrying or standing Easy controlling hydraulic power pack Hydromotor for rotation


Stock NumberHR-10000
Overall Load Capacity (lbs)22,000
Rotating Capacity (in)39,37
Working Width (in)55,5
Distance between the rolls (in)40,16
Material Rotation Speed (RPM)1
Motor (number x HP)2 x 4.0
Input Power (V)380
Total Weight (lbs)7,718 lbs.
Width x Length x Height (in)66.54 x 100.79 x 93.11
