BAILEIGH Water Jet WJ-512CNC

BAILEIGH Water Jet WJ-512CNC

Contact us for price

orCall 386-304-3720

Description

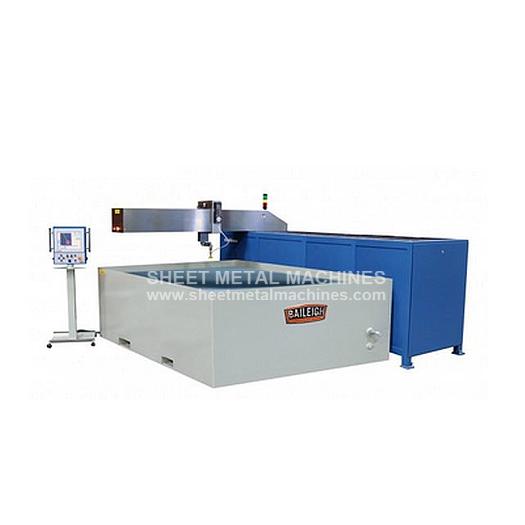

Please note: many products ship straight from manufacturer BAILEIGH Water Jet WJ-512CNC (*includes onsite training) The WJ-512CNC industrial water jet cutter from Baileigh Industrial is a great value for anyone looking to get into water jet cutting. This great machine has the ability to cut just about any material with precision. This includes glass, granite, ceramic, plastic, foam, mild steel, stainless steel, titanium, aluminum, and copper in its 60” x 144” table. The design is a cantilever design that allows for much easier material loading and unloading. This design also offers smoother action on the axis with exclusion of moving parts. All axis ride on precision balls screws with square slide ways. All slide ways are covered and protected from water for long life. The frame of the WJ-512CNC is laser cut and interlocked, then welded for strenght, rigidity, and accuracy. Every WJ-512CNC industrial water jet cutter includes our own proprietary abrasive auto feed system that is coupled with a powerful 55,000psi Hamelmann direct drive pump. This system is unique to the Baileigh Industrial line an offers a low maintenance approach to water jet cutting. To control the WJ-512CNC industrial water jet table, Baileigh Industrial includes an easy to use windows based operator touchscreen. This programmer supports any DXF file. BobCAD-Cam Express Design Software (Included) The WJ-512CNC comes standard with BobCAD-Cam Express programming software. You can design or plot out your project on any computer and load the plasma table via a USB drive. To learn more or download a free trial, click the BobCAD-Cam logo above. *Onsite training does not include initial set up of machine and is a maximum of 2 days. If more time is needed it will be billed separately.

ITEM: 60" x 144" Water Jet MANUFACTURER: BAILEIGH MODEL: WJ-512CNC

Specifications

ManufacturerBaileigh Industrial
ModelWJ-512CNC
ConditionNew
Stock NumberWJ-512CNC
Motor KW30kw
Working Table Size60" x 144"
Working Table Travel (X/Y)60"/144"
Filter Type2 Stage/2 Filter, 10 Micron & 1 Micron
Number of Filters2
Supported File FormatsDFX
Repeatability Accuracy± .001"
Production Pressure55,000 psi (38,000 bar)
Max. Flow Rate7.92 gallons per minute
Orifice Size.014"
Travel Speed40 fpm (26 fpm Cutting) Maximum
CNC SystemWindows Based
Cutting Accuracy±.001"
Inlet Pressure30 psi
Motor40 HP
Z Axis Travel6.75"
Table Load Capacity2500 lbs
Power460V / 3-phase 60amp
Hopper Capacity250 lbs
SoftwareBobCad Cam
Shipping Weight9600 lbs
