BAILEIGH Water Jet WJ-4X4CNC

BAILEIGH Water Jet WJ-4X4CNC

$101,146.50 ON SALE! While Supplies Last - On In Stock Machines Only

orCall 386-304-3720

Description

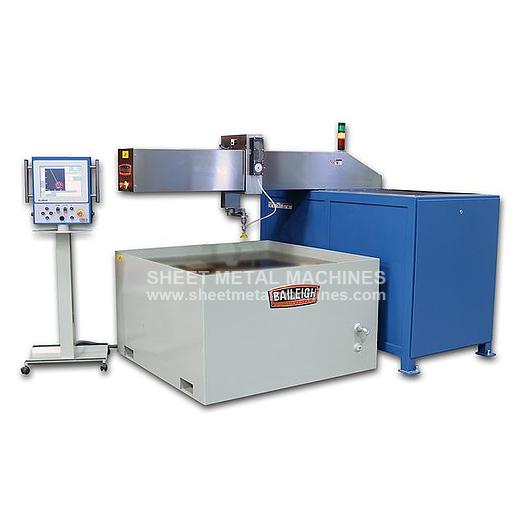

Please note: many products ship straight from manufacturer BAILEIGH Water Jet WJ-4x4CNC (*includes onsite training) The WJ-4x4CNC water jet from Baileigh Industrial is a great value for anyone looking to get into water jet cutting. This great machine has the ability to cut just about any material with precision. This includes glass, granite, ceramic, plastic, foam, mild steel, stainless steel, titanium, aluminum, and copper in its 48” x 48” table. The design is a cantilever design that allows for much easier material loading and unloading. This design also offers smoother action on the axis with exclusion of moving parts. All axis ride on precision balls screws with square slide ways. All slide ways are covered and protected from water for long life. The frame of the WJ-4x4CNC is laser cut and interlocked, then welded for strenght, rigidity, and accuracy. Every WJ-4x4CNC includes our own proprietary abrasive auto feed system that is coupled with a powerful 55,000psi Hammelmann direct drive pump . This system is unique to the Baileigh Industrial line and offers a low maintenance approach to water jet cutting. To control the WJ-4x4CNC water jet Baileigh Industrial includes an easy to use windows based operator touchscreen. This programmer will support any DXF file. BobCAD-Cam Express Design Software (Included) The WJ-4x4CNC comes standard with BobCAD-Cam Express programming software. You can design or plot out your project on any computer and load the plasma table via a USB drive. To learn more or download a free trial, click the BobCAD-Cam logo above. *Onsite training does not include initial set up of machine and is a maximum of 2 days. If more time is needed it will be billed seperately. ITEM: 48" x 48" Water Jet MANUFACTURER: BAILEIGH MODEL: WJ-4X4CNC

Specifications

ManufacturerBaileigh Industrial
ModelWJ-4X4CNC
ConditionNew
Stock NumberWJ-4X4CNC
Motor KW30kw
Working Table Size48" x 48"
Working Table Travel (X/Y)48"/48"
Table Size59" x 59"
Filter Type2 Stage/2 Filter, 10 Micron & 1 Micron
Number of Filters2
Supported File FormatsDXF
Repeatability Accuracy± .001"
Production Pressure56,000 psi
Max. Flow Rate7.92 gallons per minute
Orifice Size.014"
Travel Speed40 fpm (26 fpm Cutting) Maximum
CNC SystemWindows Based
Cutting Accuracy±.001"
Inlet Pressure30 psi
Motor40 HP
X Axis Travel48"
Y Axis Travel48"
Z Axis Travel6.75"
Power460V / 3-phase 60amp
Hopper Capacity250 lbs
SoftwareBobCAD Cam
Shipping Weight4,840 lbs
