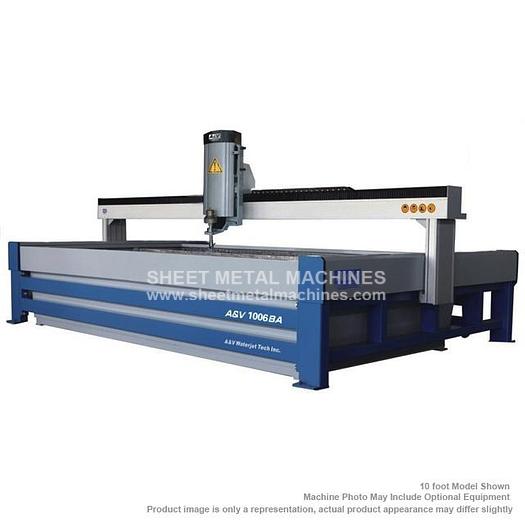

A&V WATERJET 8' x 4' Cutting Table AV0804

A&V WATERJET 8' x 4' Cutting Table AV0804

$84,995

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer  The AV 08x04BA Water Jet 4 axis system includes the following:

  • A&V Cutting Table 8’ x 4’
  • Dual Intensifier Pumps
  • Windows Industrial PC based controller
  • Remote Online Support
  • Automatic Garnet Feeder
  • 2000 Lbs Of Garnet
  • $1,000 Worth Of Spare Parts
  • 1 Year Parts Warranty (not including wear parts)
  • Control Software Manual
  • Machine maintenance and troubleshooting document/videos
  • Servo Drives and Motors are made by YASKAWA Japan (Y-axis is driven by dual motors)
  • Precision Ball Screw made by Ipiranda, Spain
  • Linear Guides and Nuts made by SKF, United States
  • Aluminum Alloy Bridge
  • Balanced weight distribution
  • 4-Axis Cutting Head: A&V four-axis cutting head is the result of our latest scientific research. The main benefit of a four-axis cutting head is to compensate taper, and to make the finished edge completely vertical through the fourth axis - a rotational axis. The four-axis cutting head actually has the structure of a five axis, which purposely has one axis under manual control b.
  • This specially engineered cutting head has performed remarkably in many cutting fields in reducing the processing cost due to increased operating efficiency. Compared with our five-axis cutting head design, it has a maximum limit of a 4 degree angle with a rotational accuracy of 0.01 degrees.
  • For taper compensation, the distance between the cutting head and the surface of the work piece must be maintained with high accuracy. The height positioning accuracy of the four-axis is 0.01mm and the cutting accuracy is 0.1mm, which can easily meet various cutting requirements.
  • In the marble matching process, waterjet cutting with a four-axis cutting head design is simply amazing. When the angle of the cutting head reaches 4 degrees, the finished edge shows tremendous improvement. As can be seen from this picture, there is no gap between the two joined surfaces. Hence, a secondary polishing procedure is no longer required. Thereby, it increases working efficiency and reduces the production cost.
  • Dual Intensifier Pumps (THIS IS A DOUBLE INTENSIFIER ALLOWS FOR SWITCHING TO 2ND HEAD SO THERE IS NO DOWNTIME WHILE PERFORMING ROUTINE MAINTENANCE)

  • CNC system:
  • Includes Industrial Personal Computer control
  • Fastcam Nesting Software is Optional
  • Automatic Speed Processing Function for Small Arcs
  • Repeat Cutting Function
  • Pause Function and Variable Starting Function
  • Accept DXF file created by AutoCAD and Solidworks, it can work for other cam software but it needs to be confirmed prior to purchase
  • Windows Operating System
  • Remote Online Support
  • Feeder and abrasive feeding system:
  • Self-feeding Control.
  • Air Valve to prevent jams and breakages.
  • Self-sealing
  • Prerequisites:
  • 1. Power Source: 480V/3 Phases/100 Amps
  • 2. Inlet/Cutting Water Line: Consistent pressure 40 – 100 PSI
  • 3. Cooling Water Line: no pressure requirement, can share with Inlet line.
  • 4. Air for garnet feeder and cutting: consistent pressure 85 PSI
  • Fittings connected to the waterjet machine needs to supply from the customer. Please refer to prerequisite guide for detail information

ITEM: 8' x 4' Cutting Table MANUFACTURER: A&V WATERJET MODEL: AV0804BA

Specifications

ManufacturerAV WATERJET
ModelAV0804
ConditionNew
Stock NumberAV0804
Working Range8' x 4'
Max. Traverse speed195”/min
Control accuracy:±0.01mm
Cutting accuracy:±0.1mm
