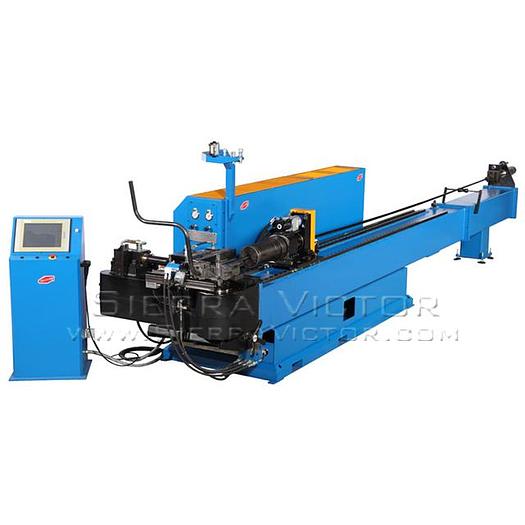

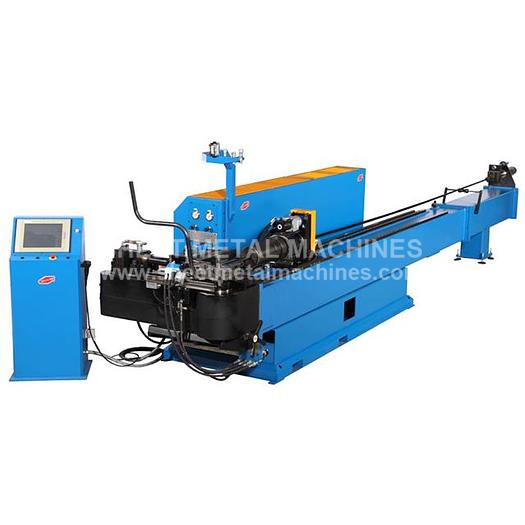

ERCOLINA GIGA BENDER CNC Mandrel Bender GB90CNC6

ERCOLINA GIGA BENDER CNC Mandrel Bender GB90CNC6

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer ERCOLINA GIGA BENDER CNC Mandrel Bender GB90CNC6 ITEM: 3-1/2" CNC Mandrel Bender MANUFACTURER: ERCOLINA MODEL: GIGA BENDER PART# GB90CNC6

Specifications

ManufacturerErcolina
ModelGB90CNC6
ConditionNew
Stock NumberGB90CNC6
Stainless3" (.150 wall)
Square Tube3-1/2" (.138 wall)
Pipe Capacity (Max.) - A362-1/2" Sch. 40
Tube Capacity (Min.)1/2"
Bend Radius (Max. | Min.)12" | 1.5D
Material Length (Max.)13' (Optional 20' table)
Hydraulic Clamping (specify when ordering)(FST) Finger or (KST) Clam Shell
(C Axis) Rotation / Bend AngleCCW / 0° to 180°
(B Axis) Bend Plane RotationAuto positioning with digital display
(X2) Pressure Die Linear TravelProgrammable with digital readout
Program StorageUnlimited with USB
Hydraulic Reservoir40 gal.
Motor (horse power @ 480V)30
Dimensions (Height x Width x Length)55" x 51" x 298"
Weight6,800 lbs.
