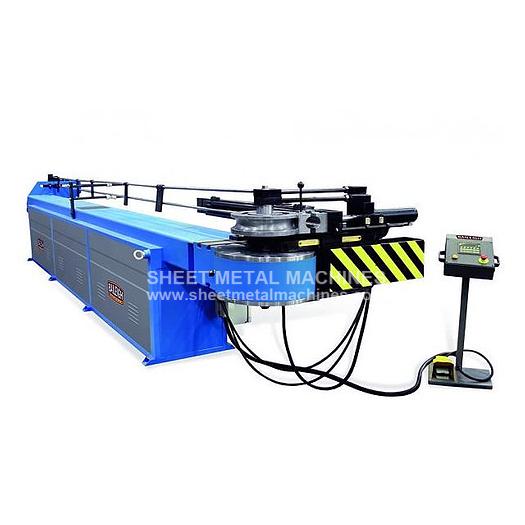

BAILEIGH Mandrel Bender MB-35NCE-1

No longer available

BAILEIGH Mandrel Bender MB-35NCE-1


Please note: many products ship straight from manufacturer

  • The next step up in the mandrel bender range, the MB- NCE-1 has an NC control unit to allow the operator to program the bend axis (Y) – the standard memory can store up to 25 programs each with 10 sequential bends (an optional larger memory can be installed at build). This allows the operator to select from the memory the bend sequence they require and load the tube and start bending. The Y & Z axis (bend and rotation) are controlled manually and like the MB-4/8 the NCE-1 mandrel pipe bender benefits from hydraulic clamping, mandrel extractor, pressure die and pressure die assist.
  • 1 axis NC control
  • Memory can store 25 programs x 10 bends – (Y)
  • Sequential flip stop axis control - (X)
  • Fully hydraulic clamping
  • Hydraulic mandrel extractor
  • Hydraulic pressure die
  • hydraulic pressure die assist
  • Available in in 35, 60 & 90mm OD capacities


  • Automatic mandrel lubrication
  • Useful bed length can be increased in 1mn increments
  • Split die system for square and custom sections

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.



ManufacturerBaileigh Industrial
Stock NumberMB-35NCE-1
Max Tube O.D (Mild Steel)35 x 3mm
Max Tube O.D (SS)30 x 2mm
Max Square Tube (Mild Steel)30 x 30 x 2mm
Max Bend Angle190°
Maximum Center Line Radius130mm
Maximum Useful Length3000mm
Bending DirectionClockwise
Power Requirements400V, 50Hz, 3 Phase
Dimensions160" x 40" x 44" 4050 x 1000 x 1120mm
Weight2,425 lbs. (1100kgs)
