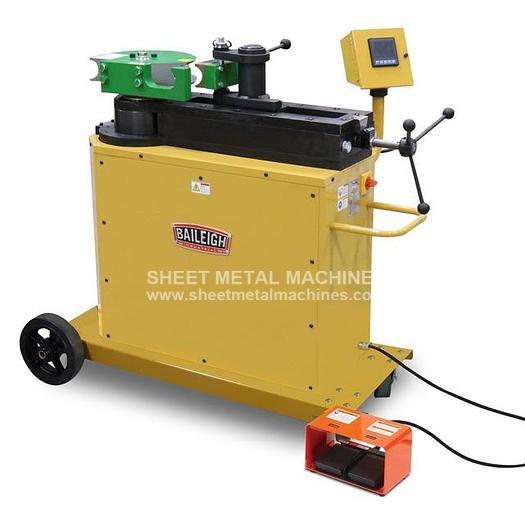

BAILEIGH Programmable Pipe Bender RDB-325

BAILEIGH Programmable Pipe Bender RDB-325


orCall 386-304-3720


Please note: many products ship straight from manufacturer BAILEIGH Programmable Pipe Bender RDB-325

Designed to be a workhorse in any shop for decades, this tube and pipe bender can tackle a huge capacity of 2” schedule 80 pipe (mild steel T.S. 64,000 PSI) and 3” round tubing.

  • 16” maximum centerline radius depending on material OD.
  • Runs on 220-volt single-phase power, so it will work in almost any fabrication setting.
  • Rotates up to 360° degrees in either direction, ideal for rod applications if you use our optional universal bending plate.
  • Comes standard with a simple-to-use touchscreen controller.
  • Internal storage holds up to 170 programs of up to 10 bends per program.
  • Also accepts memory cards (standard 2CB SD card, max) to store programs.
  • Convenient foot pedal controls let you stop and start the machine while leaving your hands free.
  • Swing-away counterdie system helps you save valuable time on tooling changes and increase your production.
  • Compatible with over 5,000 optional die and tooling sets available from Baileigh Industrial. There’s sure to be one that can fit your application!
  • You can add an optional indexing table to bend on varying planes and easily duplicate complex bends.
  • Covered by a 1-year parts warranty.
  • This tube bender includes lifetime technical support by phone from a team of reps with hands-on metalworking experience.


ManufacturerBaileigh Industrial
Stock NumberRDB-325
Country of ManufactureUnited States
Minimum CLR.5"
Minimum OD.25"
Mild Steel Solid Rod1.25"
Mild Steel Pipe Schedule 802"
Mild Steel Round Tube Wall3" (.095)
Mild Steel Square Tube (Wall)2" (.125)
Stainless Steel Pipe Schedule 402"
Stainless Steel Round Tube Wall3" (.095)
Chromolly Round Tube Wall3" (.083)
Aluminum Round Tube Wall3" (.203)
Maximum Center Line Radius Clr16.5"
Power220V Single Phase
Special Notestooling not included, contact Sierra Victor Industries 386-304-3720 for correct sizing.
Shipping Dimensions60" x 32" x 48"
Shipping Weight1,200 lbs.
