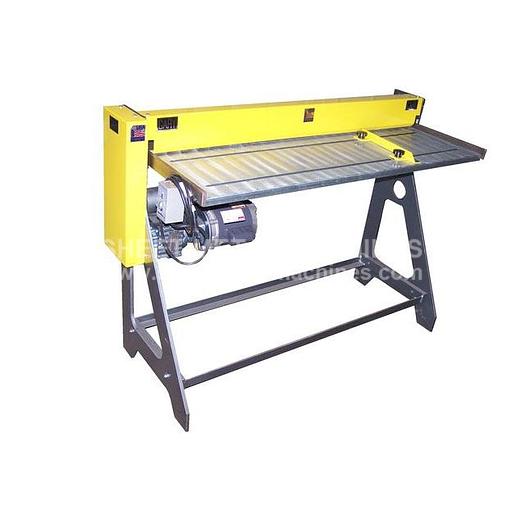

GARY MACHINERY Super Duty Deluxe Sheet Slitter 3350DX

GARY MACHINERY Super Duty Deluxe Sheet Slitter 3350DX

$5,870

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer GARY MACHINERY Super Duty Deluxe Sheet Slitter 3350DX ITEM: 48" Super Duty Deluxe Sheet Slitter MANUFACTURER: GARY MACHINERY MODEL: 3350DX MADE IN USA The Superduty Deluxe 48” Sheet Slitters offers many extra features for this multi-cutting equipment. To better serve the processor requiring a wider range of capacities, the Superduty Deluxe comes with a built in entry guide, stripper rings and intergraded scale to help the operator in setting up the cuts. It has the end housings with the legs integrated into them. The 3350DX “SuperDuty Deluxe" is equipped with a 3/4 HP motor with standard 110 V plug-in services to supply the torque required to cut a wide range of material thickness (16 gauge through 30 gauge) at a standard operating speed of 60 FPM. Two sets of tooling and Stripper Rings come standard on this slitter. The Stripper Rings are beneficial for light gauge prepainted material to prevent marking the surface. STANDARD FEATURES: 3” diameter cold-roll turned, ground and polished shafts mounted in dual wall ball bearings Bearing are lubricated for life series Gauge mounting on each side permits left or right hand operation End frames have legs integrated into them for a more stable machine The exclusive GARY Torsion Tube Assembly makes it a lightweight rugged unit Heavy gauge steel table with a slotted top and quick-adjust entry guide Slitter knives are proven GARY “Quickset” design manufactured from toolsteel Knives are “reversible”, intervals between sharpening is double that of a single edge knives 2 sets of standard 3” x 5” x 3/4" wide high-carbon tooling is included 60 FPM standard operating speed Heavy duty roller chain drive powered by 3/4 HP gearmotor with thermal overload Stripper rings to help prevent marking on pre-painted materials Standard 110/220 V -1 Phase; 240-480/3 phase; or Variable Speed Controller

Specifications

ManufacturerGary Machinery
Model3350DX
ConditionNew
Stock Number3350DX
Width Overall58"
Width Between Frames52-1/4"
Maximum Sheet Width48-1/2" or 51" less guage
Standard Table Height35"
Depth Overall26"
Arbor Diameter3"
Knife Dimensions5" O.D. x 3/4"
Motor HP3/4 HP
Feed Speed (FPM)60 FPM
Voltage110/220V , 1 PH
Weight515 lbs.
THICKNESSMODEL 3350DX SUPER DUTY DELUXE
