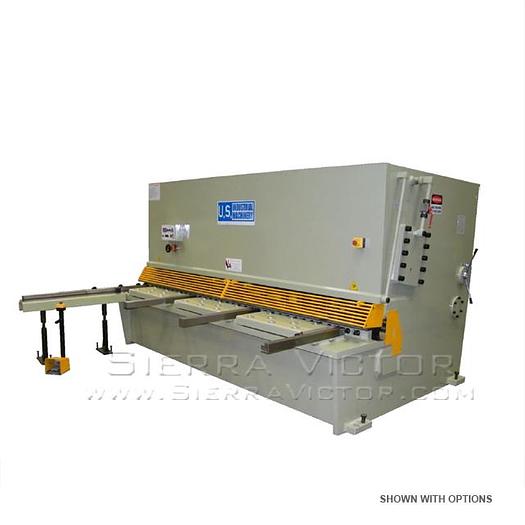

U.S. INDUSTRIAL Hydraulic Shear US13500

U.S. INDUSTRIAL Hydraulic Shear US13500
$54,485
Description
Please note: many products ship straight from manufacturer U.S. INDUSTRIAL Hydraulic Shear US13500 ITEM: 13' x 1/2" Hydraulic Shear MANUFACTURER: U.S. INDUSTRIAL MODEL: US 13500 EQUIPPED WITH: *Material Support/Drop Chute (*included in price) Squaring arm High Carbon, High Chrome Shear Blades Ball Transfers on Each Table Segment Manual Quick Change Blade Gap Adj. Squaring Arm, 39.5” from blade to end Stroke Counter Front-controlled Power Back Gauge Blade Guard, Micro Switch Protected Hydraulic, Electrical Overload Protection Automatic Swing-up on Back Gauge Bolt on table segments…quantity of 3 Hold-downs faced w/anti-mar neoprene Swing Beam Design Pressure Sensing Hold Downs Electric Stroke Adjustment Operator Control Console Shadow Lighting Low Noise Gear Pump Support Arms Included OPTIONAL ITEMS: CALL FOR PRICE 3-axis CNC programmable back gauge: Touch-screen operated. Controls back gauge depth, blade gap and stroke length. It has a 200 program storage capacity, and it can be operated in manual or automatic mode. Pneumatic sheet support 6 foot squaring arm 8 foot squaring arm 10 foot squaring arm 48" back gauge; no swing up Training in our Memphis, TN Showroom Training at customer site, less than 300 miles from Memphis Training at customer site, more than 300 miles from Memphis Training outside continental USA
Specifications
Manufacturer | US Industrial |
Model | US13500 |
Condition | New |
Stock Number | US 13500 |
Sheet size | 157" |
Shearing capacity | 1/2" mild steel @ 65,000 PSI |
Shear angle | 1°30' |
No load strokes | 8 |
Throat depth | 3.0" |
Adjustment range of back gauge | 0.75" - 36" |
Hydraulic oil capacity | 113 gals. |
Motor | 25 HP |
Dimensions | 193" x 88" x 80" |
Weight approx. | 33,069 lbs |
