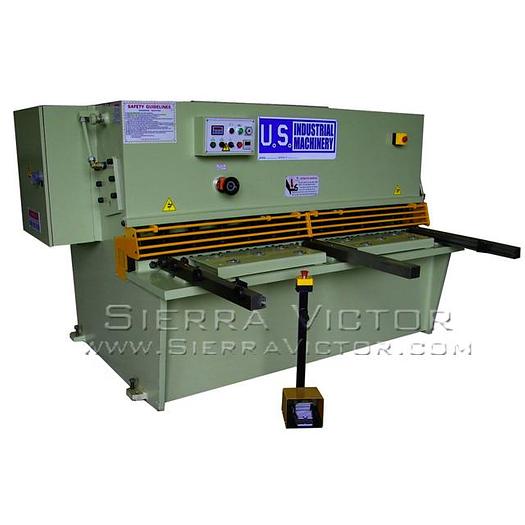

U.S. INDUSTRIAL Hydraulic Shear US625

U.S. INDUSTRIAL Hydraulic Shear US625

$36,995 FREE SHIPPING!

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

*Due to weekly changes in steel costs all machines are priced at time of quote request U.S. INDUSTRIAL 6' x 1/4" Hydraulic Shear US625 EQUIPPED WITH:

  • Material drop/support chute (This device makes it easier to retrieve sheared drops and is normally required by customers) - Included in Price
  • Squaring Arm with inlaid scale, 39”
  • Bolt on table segments...quantity of 3
  • High Carbon, High Chrome Shear Blades
  • Hold-downs faced w/anti-mar neoprene
  • Ball Transfers on Each Table Segment
  • Swing Beam Design
  • Manual Quick Change Blade Gap Adj.
  • Pressure Sensing Hold Downs
  • Squaring Arm, 39” from blade to end
  • Electric Stroke Adjustment
  • Stroke Counter
  • Operator Control Console
  • Front-operated Power Back Gauge with DRO
  • Shadow Line with LED lighting
  • Blade Guard, Micro Switch Protected
  • Low Noise Gear Pump
  • Hydraulic, Electrical Overload Protection
  • Support Arms Included
  • Automatic Swing-up on Back Gauge
  • 6CrW2Si blades for cutting mild carbon steel


OPTIONAL ITEMS: CALL FOR PRICE

  • 3-axis CNC programmable back gauge: Touch-screen operated. Controls back gauge depth, blade gap and stroke length. It has a 200 program storage capacity, each program up to 20 steps, and it can be operated in manual or automatic mode.
  • Upgrade to Pneumatic Sheet Support AND Material drop chute
  • Upgrade to 6-Foot Squaring Arm with inlaid scale
  • Upgrade to 8-Foot Squaring Arm with inlaid scale
  • Upgrade to 10-Foot Squaring Arm with inlaid scale
  • Upgrade Cr12MoV blades for cutting up to 1/8” thick stainless
  • Upgrade to 48” Back Gauge; no swing up
  • Training in our Memphis, TN Showroom
  • Training at customer site, less than 300 miles from Memphis
  • Training at customer site, more than 300 miles from Memphis
  • Training outside continental USA - Please Call for Quote


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerUS Industrial
ModelUS 625
ConditionNew
Stock NumberUS625
Sheet size78.5"
Shearing capacity1/4" mild steel @ 65,000 PSI; 1/8” Stainless Steel @ 95,000 PSI UTS (Must consider option for Cr12MoV blades.)
Shear angle1° 30'
No load strokes18
Throat Depth4.7"
Adjustment range of back gauge0.75" - 36"
Hydraulic oil capacity45 gals.
Motor15 HP, 220 or 440 Volts, 3 phase (specify)
Dimensions103" x 63" x 63"
Weight approx.11,023 lbs
