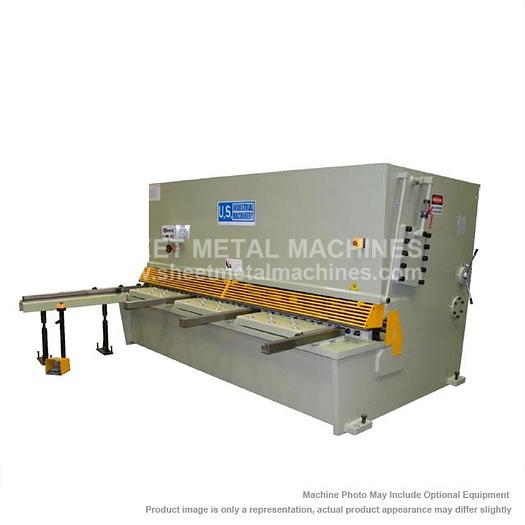

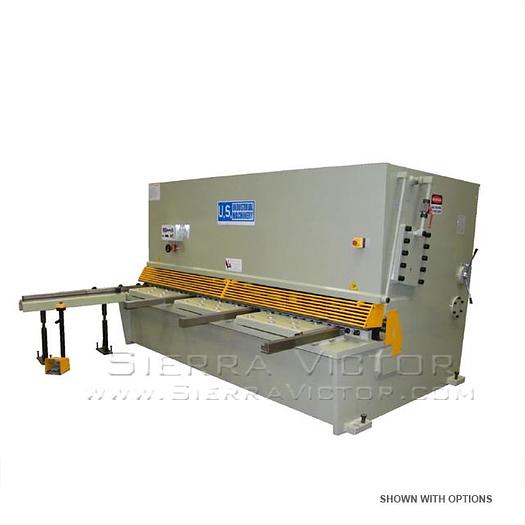

U.S. INDUSTRIAL Hydraulic Shear US13625

U.S. INDUSTRIAL Hydraulic Shear US13625

Contact us for price

orCall 386-304-3720


Please note: many products ship straight from manufacturer

*Due to weekly changes in steel costs all machines are priced at time of quote request U.S. INDUSTRIAL 13' x 5/8" Hydraulic Shear US13625 EQUIPPED WITH: Squaring arm High Carbon, High Chrome Shear Blades Ball Transfers on Each Table Segment Manual Quick Change Blade Gap Adj. Squaring Arm, 39.5” from blade to end Stroke Counter Front-controlled Power Back Gauge Blade Guard, Micro Switch Protected Hydraulic, Electrical Overload Protection Automatic Swing-up on Back Gauge Bolt on table segments…quantity of 3 Hold-downs faced w/anti-mar neoprene Swing Beam Design Pressure Sensing Hold Downs Electric Stroke Adjustment Operator Control Console Shadow Lighting Low Noise Gear Pump Support Arms Included OPTIONAL ITEM: CALL FOR PRICE 3-axis CNC programmable back gauge: Touch-screen operated. Controls back gauge depth, blade gap and stroke length. It has a 200 program storage capacity, and it can be operated in manual or automatic mode. Material Support/Drop Chute Pneumatic sheet support 6 foot squaring arm 8 foot squaring arm 10 foot squaring arm 48" back gauge; no swing up Training in our Memphis, TN Showroom Training at customer site, less than 300 miles from Memphis Training at customer site, more than 300 miles from Memphis Training outside continental USA


ManufacturerUS Industrial
ModelUS 13625
Stock NumberUS13625
Sheet size157"
Shearing capacity5/8" mild steel @ 65,000 PSI
Shear angle1°30'
No load strokes6
Throat depth5.9"
Adjustment range of back gauge0.75" - 36"
Hydraulic oil capacity137 gals.
Motor40 HP
Dimensions188" x 90" x 88"
Weight approx.37,478 lbs
