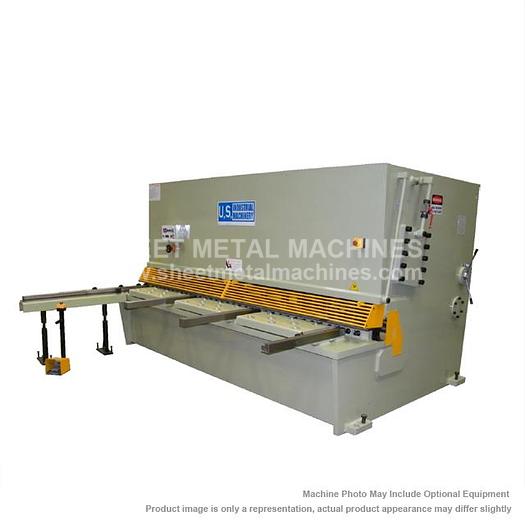

U.S. INDUSTRIAL Hydraulic Shear US10750

U.S. INDUSTRIAL Hydraulic Shear US10750

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

*Due to weekly changes in steel costs all machines are priced at time of quote request U.S. INDUSTRIAL 10' x 3/4" Hydraulic Shear US10750 EQUIPPED WITH: Squaring arm High Carbon, High Chrome Shear Blades Ball Transfers on Each Table Segment Manual Quick Change Blade Gap Adj. Squaring Arm, 39.5” from blade to end Stroke Counter Front-controlled Power Back Gauge Blade Guard, Micro Switch Protected Hydraulic, Electrical Overload Protection Automatic Swing-up on Back Gauge Bolt on table segments…quantity of 3 Hold-downs faced w/anti-mar neoprene Swing Beam Design Pressure Sensing Hold Downs Electric Stroke Adjustment Operator Control Console Shadow Lighting Low Noise Gear Pump Support Arms Included OPTIONAL ITEMS: CALL FOR PRICE 3-axis CNC programmable back gauge: Touch-screen operated. Controls back gauge depth, blade gap and stroke length. It has a 200 program storage capacity, and it can be operated in manual or automatic mode. Material Support/Drop Chute Pneumatic sheet support 6 foot squaring arm 8 foot squaring arm 10 foot squaring arm 48" back gauge; no swing up Training in our Memphis, TN Showroom Training at customer site, less than 300 miles from Memphis Training at customer site, more than 300 miles from Memphis Training outside continental USA

Specifications

ManufacturerUS Industrial
ModelUS 10750
ConditionNew
Stock NumberUS10750
Sheet size126"
Shearing capacity3/4" mild steel @ 65,000 PSI
Shear angle1°30'
No load strokes5
Throat depth5.9"
Adjustment range of back gauge0.75" - 36"
Hydraulic Oil Capacity137 Gal
Motor50 HP
Dimensions161" x 90" x 88"
Weight approx.39,683 lbs
