TENNSMITH Low-Profile Mechanical Shear LM610

TENNSMITH Low-Profile Mechanical Shear LM610

Contact us for price

orCall 386-304-3720

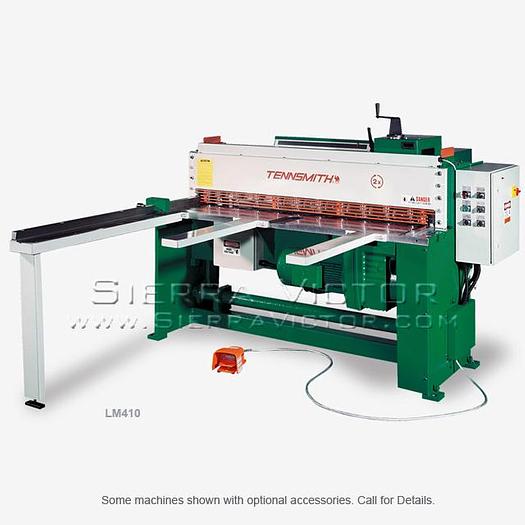

Please note: many products ship straight from manufacturer TENNSMITH 6' x 10 ga Low-Profile Mechanical Shear LM610 MADE IN USA. TENNSMITH'S LM Series Mechanical Shears utilize a low maintenance design, coupled with an array of standard features for an attractive combination of high value and solid performance. The LM410 incorporates the unique 2x-F back gauge system. This allows the operator to move the backstop from 0 - 24 inches in approximately 2 seconds with only two rotations of the handle. The LM610 and LM810 incorporate the same 2x-F system, but with the added capacity of 30-inch travel. An optional digital readout is available for this system.

  • The LM Series shears are standard with four-edge, high carbon, high chrome top and bottom blades, independent, self-leveling hold down feet with neoprene inserts, single, continuous and jog stroke cycles, motor reverse switch, precision-machined table with hand well, dual inch/metric inlaid bed scales and non-metallic gibs.
  • LM410 capacities are 10-gauge mild steel, 16-gauge stainless up to 52-1/2" in cutting length.
  • LM610 capacities are 10-gauge mild steel, 14-gauge stainless up to 73" in cutting length.
  • LM810 capacities are 10-gauge mild steel, 14-gauge stainless up to 98" in cutting length.
  • To enhance productivity, optional equipment available for the machines.
  • The LM Series also has available an air operated sheet support system. This system is available in two styles for the LM412:
  • System-R drops the supported material to the rear of the machine
  • System-F returns the supported material to the front of the machine via a front return chute
  • The Models LM610 and LM810 are available only with System-R
  • Please call 386-304-3720 for details OPTIONAL ITEMS:
  • Wired for CSA Canadian Electrical Standard: $CALL
  • 83800: Squaring Arm Five Foot with Dual Inlaid Inch/Metric Scale: $CALL
  • 83805: Squaring Arm Ten Foot with dual Inlaid Inch/Metric Scale: $CALL
  • 83815: Additional Flip-up Stops for Squaring Arm (each): $CALL
  • 83820: Front Support Arms Pair: $CALL
  • 83825: T-Slotted Table with Two Front Support Arms with Inlaid Inch/Metric Scales: $CALL
  • 83830: Additional Flip-up Stops for T-Slotted Support Arms and Table (each): $CALL
  • 83835: Power Back-gauge 30-Inch Travel: $CALL
  • 83840: Protractor Attachment: $CALL
  • 83885: Work Shadow Light LM Series: $CALL
  • 83895: Digital Readout for 2x Back-gauge System: $CALL
  • 83890: Stroke Counter (Electro-Mechanical): $CALL
  • 83935: LM610 High Carbon High Chrome 4 Edge per set: $CALL


Stock Number83120
Maximum shearing capacity, Mild Steel*10 gauge / 3.5mm
Maximum shearing capacity, Stainless Steel**14 gauge / 2.0mm
Maximum cutting length73" (6') / 1,854mm
Back gauge range30" / 762mm
Strokes per minute, full length35
Number of hold down feet14
Motor - 230/460V, 3-Phase, 60Hz7.5 HP
Dimensions, (LxWxH)92" x 27" x 56"
Floor space, gauges in position92" x 72" x 56"
Shipping Weight:4,500 lbs.
