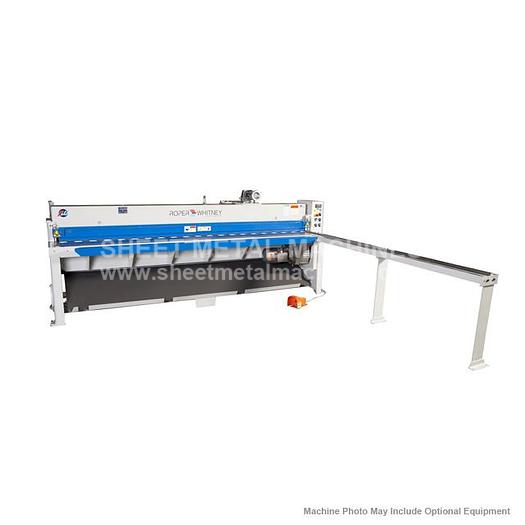

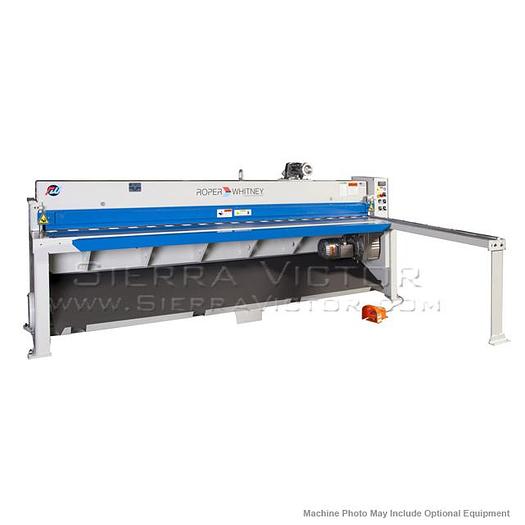

ROPER WHITNEY Mechanical Shear with Pro Package-F 10M14F

ROPER WHITNEY Mechanical Shear with Pro Package-F 10M14F

$32,524

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer ROPER WHITNEY Mechanical Shear with Pro Package-F 10M14F (Front Return Sheet Support System) The 10M14 capacity is 14-gauge mild steel, 18-gauge stainless up to 121.25 inches in cutting length. The 10M14 Series shears are standard with an two edge interchangeable top and bottom, high carbon, high chrome top and bottom blades , independent, self-leveling hold down with neoprene insert, single, continuous and jog stroke cycles, motor reverse switch, precision-machined table, with dual inch/metric inlaid bed scales and non-metallic gibs. Non-metallic self-lubricating ram gibs ensure long life for the 10M14. Maintenance free self-lubricating bearings are standard. Roper Whitney mechanical shears utilize a simple low maintenance design, coupled with an array of standard features for an attractive combination of high value and solid performance. The 10M14 capacity is 14-gauge mild steel, 18-gauge stainless up to 121.25 inches in cutting length. The electro-mechanical design of the 10M14 provides quiet operation with low power consumption. The shear is initiated by a moveable foot switch. An oversized shield and toe kick plate are incorporated into the foot switch for added operator safety. The 10M14 is capable of 35 cutting strokes per minute. For increased speeds please consult factory. Benefits of the 10M14 powered shear are: Low power consumption Quiet operation Superior quality of cut Fast power back gauge Roper Whitney 10M14 series shears are available in a “Pro Package” configuration. The Pro Package includes: a 4' Left-Hand Squaring Arm with Right-Hand also available, slide-out Front Support Bar for even handling of varying material thicknesses, and Air Operated Sheet Support System. Pro “F” system is for front return. Pro “FC” features a moveable front return Material Cart. MADE IN USA ITEM: 10' (124-1/4") x 14 ga. Mechanical Shear with Pro Package-F MANUFACTURER: ROPER WHITNEY MODEL: 10M14F PART# 172361014 PART # ITEM 172340614 Front Operated Digital Readout Powered Backgauge 172330614 Front Operated Programmable Powered Backgauge 273940016 Front Material Return / Sheet Support 273940005 Work Light 273940006 Front Extension Arms 273940042K Side Extension Squaring Arm w/ Fixed Stop ( 4' ) 273940043K Side Extension Squaring Arm 4' to 8' 273940044K Side Extension Squaring Arm 8" to 12' 350700273 HC / HC Blade 273940007 Fixed Stop Assembly 272940015 Digital Readout for 2R Back gauge 272940016 Go-to Power Back gauge 272940009 Stroke Counter 273940032 Front Material Return / Sheet Support System for DRO & NC Shear

Specifications

ManufacturerRoper Whitney
Model10M14F
ConditionNew
Stock Number10M14F
Catalog No.172361014
Maximum Shearing Capacity, Mild Steel*14 ga.
Maximum Shearing Capacity, Stainless Steel**18 ga.
Maximum Cutting Length124.25"
Back Gauge Range30"
Strokes Per Minute35
Hold down SystemSolid bar with Non-Marring Urethane Insert
Drive Motor5 HP, 230/460V, 3 phase, 60 Hz
Back gauge motor1/4 HP, 230/460V, 3 phase, 60 Hz
Overall Dimensions, Less Gauges (LxWxH)141" x 27" x 52"
Floor space, Gauges in position141" x 64" x 52"
Shipping Weight5,700 lbs.
