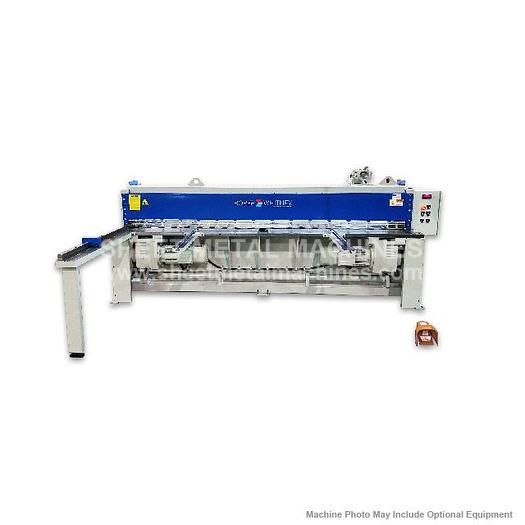

ROPER WHITNEY Mechanical Shear with Pro Package-R PX410-R

ROPER WHITNEY Mechanical Shear with Pro Package-R PX410-R

Contact us for price

orCall 386-304-3720


Please note: many products ship straight from manufacturer ROPER WHITNEY Mechanical Shear with Pro Package-R PX410-R (Rear Return Sheet Support System) Pexto PX Series mechanical shears utilize a low maintenance design, coupled with an array of standard features for an attractive combination of high value and solid performance. The PX410 has an oversized motor and gear box making the machine capable of 45 strokes per minute. The PX410 is ideal for high volume applications and the rated capacity is 10-gauge mild steel, 12-gauge stainless up to 52 ¼” inches in cutting length. The PX410 has a standard 30” powered back gauge system available. The screw-driven back gauge provides quick, accurate cuts. The operator simply pushes a button to drive the back gauge to the proper position and can fine tune the dimension using the hand wheel. The PX Series shears standard features include four-edge, high carbon, high chrome blades, independent, self-leveling hold down feet with neoprene inserts, single, continuous and jog stroke cycles, motor reverse switch, precision-machined T-Slotted table. The table also has a hand well with dual inch/metric inlaid bed scales. The PX Series incorporates non-metallic ram gibs and low maintenance garlock bearings. To enhance productivity, the PX series can be delivered in a “Pro Package” configuration. The Pro Package includes: 5′ Squaring Arm, Two Front Support Arms, Rear Drop Air Operated Sheet Support System and the 30″ Front Operated Powered Back gauge with Digital Readout. MADE IN USA ITEM: 4' x 10 ga. Mechanical Shear with Pro Package-R MANUFACTURER: ROPER WHITNEY MODEL: PX410-R PART# 172010410


ManufacturerRoper Whitney
Stock NumberPX410-R
Maximum Shearing Capacity, Mild Steel*10 ga.
Maximum Shearing Capacity, Stainless Steel**14 ga.
Maximum Cutting Length52.25"
Back Gauge Range30"
Strokes Per Minute45
Number of Hold-down Feet14
Drive Motor - 230/460V, 3-phase, 60Hz10 HP
Back gauge motor 230/460V, 3-phase, 60Hz (if equipped)1/4 HP
Overall Dimensions, Less Gauges (LxWxH)72 x 72 x 48
Floor space, Gauges in position72 x 78 x 60
Shipping Weight (lbs.)4,000
