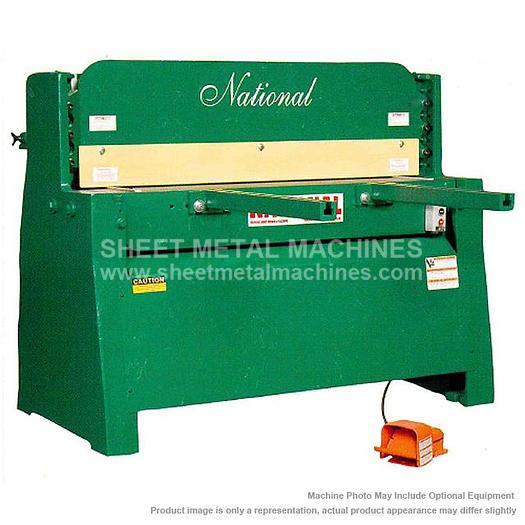

NATIONAL Hydraulic Shear NH9625

NATIONAL Hydraulic Shear NH9625

$27,726

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer NATIONAL Hydraulic Shear NH9625 National offers four powerful heavy duty precision hydraulic shears with all steel cutter heads and tables. Standard with hydraulic rubber inserted hold downs, quick adjusting back gauge for direct reading with a positive lock, front arm extensions, table gauges, heavy duty foot switch and well lighted work area. You receive a full three year warranty. The hydraulic unit conforms to J.I.C. standards featuring simplicity of design. The National hydraulic system is simple to maintain with standard replacement parts such as valves, cylinders, hoses and oil. The National shear is actuated by a portable shrouded electric foot switch attached to a long flexible cable so it may be positioned comfortable to the operator. National Shears have high carbon, high chromium blades with four cutting edges of premium quality tool steel and will withstand nicking and wear better than relieved blades. National blades are secured to the shear with tempered flathead screws through countersunk holes in blades. Complete cuts of full width pieces are 2” longer than specified cutting length. The high strength steel side constructed side frames are made of the highest tensile strength metal needed for long life and accurate shearing. Under drive construction with downward cylinders and major hydraulics under the bed gives the shear a low profile. All Steel Construction Standard high carbon high chromium blades LIFETIME WARRANTY AGAINST BREAKAGE ON ALL STEEL MACHINES MADE IN USA ITEM: 96" x 1/4" Hydraulic Shear MANUFACTURER: NATIONAL MODEL: NH9625 PART # ITEM NSA96 60" Squaring Arm NBG96 Powered Back Gauge. Digital Readout

Specifications

ManufacturerNational
ModelNH9625
ConditionNew
Stock NumberNH9625
Stainless Steel1/8” / 3.2mm
Strokes Per MinuteApprox. 12
Cutting Length96”/2438mm
Motor (Single Phase Available)7-1/2 h.p. 208 volt , 1800 rpm 240 volt , 3 phase 460 volt
Oil Reservoir Capacity24gal / 91 liters
Floor Space w/ Gauges116” x 98” x 60”
Floor Space w/o Gauges116” x 39-1/4” x 60”
Shipping Weight7,000 lbs (3176kgs)
