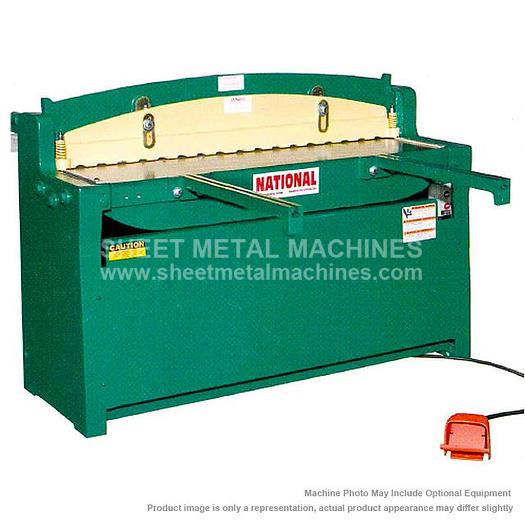

NATIONAL Hydraulic Shear NH5216

NATIONAL Hydraulic Shear NH5216


orCall 386-304-3720


Please note: many products ship straight from manufacturer NATIONAL 52" x 16 ga Hydraulic Shear NH5216 National heavy duty power shears are equipped with a fully integrated hydraulic unit. Complete with electrical hydraulic valve, pilot operated-pressure relief valve, heavy duty foot switch that allows this unit to return to the top of the stroke when the operator removes his foot from the foot switch. Heavy duty double acting cylinders. Fully enclosed control panel. The National shear is actuated by a portable shrouded electric foot switch attached to a long flexible cable so it may be positioned comfortable to the operator. Steel side frames, all steel cutter heads and tables with solid 4-edge high carbon high chromium blades. Quick adjusting back gauge for direct reading with a positive lock. All Steel Construction Standard high carbon high chromium blades LIFETIME WARRANTY AGAINST BREAKAGE ON ALL STEEL MACHINES MADE IN USA

STANDARD EQUIPMENT: Table gauges Front arm extensions OPTIONAL ITEMS: NSA52 - 57" Squaring Arm: $815.00 NBG52- Powered Back Gauge. Digital Readout: $6,938.00 QS52 - Quickset Backgauge: Front operated manual digital "QUICK SET" two turn 30" back gauge: $2,890.00

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.



Stock NumberNH5216
Stainless Steel20 Gauge: .9mm
Strokes Per MinuteApprox. 25
Cutting Length52” (1321mm)
Motor (Single Phase Available)3 h.p. 208 volt 1800 rpm 240 volt 3 phase 460 volt
Oil Reservoir Capacity24 gal (91 liters)
Floor Space w/ Gauges61” x 75-7/8” x 42-1/4” 1549 x 1927 x 1073mm
Floor Space w/o Gauges61” x 22-3/4” x 42-1/4” 1549 x 578 x 1073mm
Shipping Weight1,400 lbs (635kgs)
