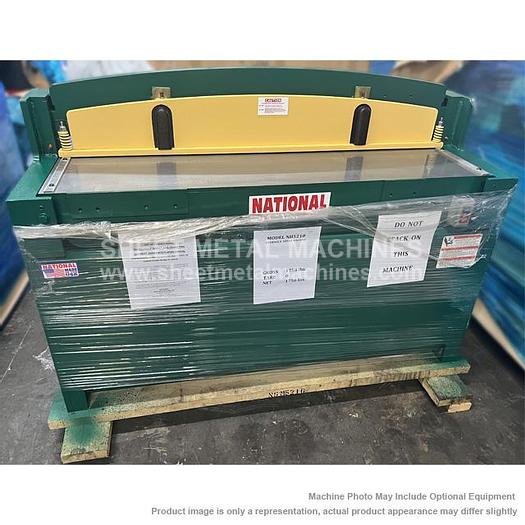

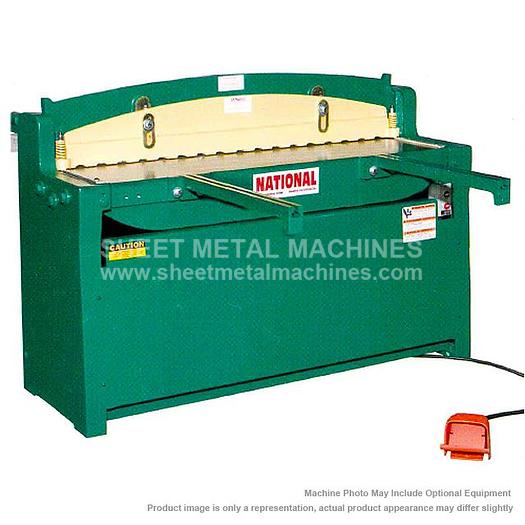

NATIONAL Hydraulic Shear NH5210

NATIONAL Hydraulic Shear NH5210

$11,490

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer NATIONAL Hydraulic Shear NH5210 National heavy duty power shears are equipped with a fully integrated hydraulic unit. Complete with electrical hydraulic valve, pilot operated-pressure relief valve, heavy duty foot switch that allows this unit to return to the top of the stroke when the operator removes his foot from the foot switch. Heavy duty double acting cylinders. Fully enclosed control panel. The National shear is actuated by a portable shrouded electric foot switch attached to a long flexible cable so it may be positioned comfortable to the operator. Steel side frames, all steel cutter heads and tables with solid 4-edge high carbon high chromium blades. Quick adjusting back gauge for direct reading with a positive lock. All Steel Construction Standard high carbon high chromium blades LIFETIME WARRANTY AGAINST BREAKAGE ON ALL STEEL MACHINES MADE IN USA ITEM: 52" x 10 ga Hydraulic Shear MANUFACTURER: NATIONAL MODEL: NH5210 PART # ITEM NSA52 57" Squaring Arm NBG52 Powered Back Gauge. Digital Readout QS52 Quickset Backgauge: Front operated manual digital "QUICK SET" two turn 30" back gauge

Specifications

ManufacturerNational
ModelNH5210
ConditionNew
Stock NumberNH5210
Stainless Steel14 Gauge: 1.9mm
Strokes Per MinuteApprox. 25
Cutting Length52” (1321mm)
Motor (Single Phase Available)5 h.p. 208 volt 1800 rpm, 240 volt 3 phase, 460 volt
Oil Reservoir Capacity24 gal (91 liters)
Floor Space w/ Gauges62” x 75-7/8” x 42-1/4” 1575 x 1927 x 1073mm
Floor Space w/o Gauges62” x 22-3/4” x 42-1/4” 1575 x 578 x 1073mm
Shipping Weight1,950 lbs (885kgs)
