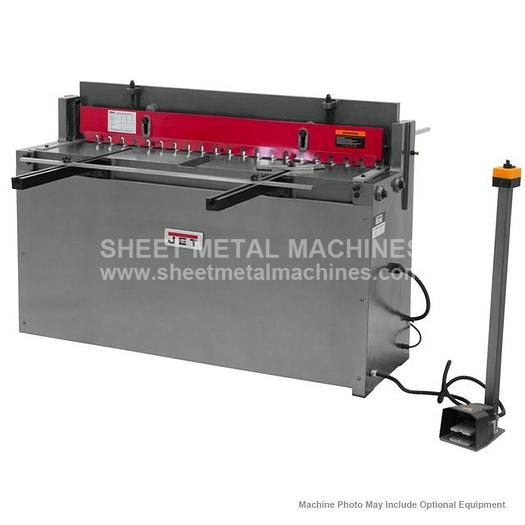

JET PS-1652T Pneumatic Shear 756203

JET PS-1652T Pneumatic Shear 756203

$5,599

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET PS-1652T, 52" x 16 Gauge Pneumatic Shear, 756203 The JET PS-1652T delivers the strength and accuracy your shop demands in a rugged, cast-iron grade frame. Capable of making the big cuts, and versatile enough to handle just about any job you need completed. The pneumatic control system ensures smooth operation and smooth cuts along the precision-aligned bed and beam. Hi-quality cast-iron grade frame to eliminate deflection across the blade-span and blade frame work Low cutting angle to cut narrow strips without twisting Precise bed and beam alignment assures working accuracy Adjustable working bed for correct setup according to the blade clearance 16 gauge maximum capacity for mild-steel 14 gauge maximum capacity for aluminum and copper alloys 40 Strokes per Minute - Full Length 8.8 Air Consumption - CFM ITEM: 52" x 16 ga Pneumatic Power Shear MANUFACTURER: JET MODEL: PS-1652T PART# 756203

Specifications

ManufacturerJet
ModelPS-1652T
ConditionNew
Stock Number756203
Max. Soft. Alloy Capacity (Gauge)12-14
Mild Steel Capacity (Gauge)16
Shearing Length Capacity (in.)52
Back Gauge Capacity (in.)28-1/2
Front Gauge Capacity (in.)28
Strokes Per Minute (Full Length)40
Overall Dimensions (in. / L x W x H)60 x 24 x 43
Net Weight (lbs.)1,048
