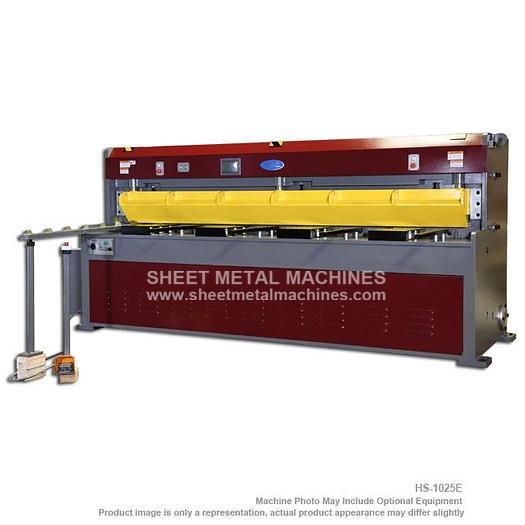

GMC Machine Tools Heavy Duty Hydraulic Shear HS-1025E

GMC Machine Tools Heavy Duty Hydraulic Shear HS-1025E
$27,850
Description
Please note: many products ship straight from manufacturer GMC Heavy Duty Hydraulic Shear HS-1025E
- ISO 9001 certified
- Designed in USA , Taiwan Quality machines
- 36” NC go-to power back gauge with touch screen for HS-1025E
- Quick Change Blade Gap Adjustment (BGA), with gap dials
- CE standard “OMERO” electric control system
- Meet OSHA safety standard code
- Shadow line for accurate straight cutting
- Adjustable cutting length and stroke
- Ball transfer plates on worktable for easy loading workpiece
- Well balanced and sturdy all steel machine frame
- German made Hydraulic logic system centrally located and quiet
- Hydraulic hold-downs with anti-mar neoprene
- Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
- Full length viewable safety finger guard to protect operator from cutting hazard
- Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
- Hydraulic, electrical overload protection
- Compact operator control panel
- All motors are overload protected & low voltage control system
- Jog or continuous auto cycle cutting operation modes
- One year industrial warranty for parts
EQUIPPED WITH:
- 36” go to NC back gauge w/ touch screen is for model HS-1025E
- 1 each 60” squaring arm with inlaid inch/metric dual scale
- Quick change blade gap adjustment (BGA) with dials
- Shadow line for accurate straight cutting
- Material support and drop back chute
- Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
- 2 each 24” front support arms
- Hydraulic hold-downs with anti-mar neoprene
- Full length viewable finger guard
- Removable safety foot pedal
- Tool box
OPTIONAL ITEMS: CALL FOR PRICE Safety fence for enclosure of the back side of the machine
Specifications
Manufacturer | GMC Machine Tools |
Model | HS-1025E |
Condition | New |
Stock Number | HS-1025E |
Cutting capacity: mild steel, stainless steel | 10' x 1/4", 10' x 3/16" |
Blade length | 10' |
Strokes per minute | 10-12 |
Throat depth | 18" |
Worktable height | 34-1/2" |
Front support arm | 24" |
Back gauge for E model | 36” go to NC B.G |
Blade rake angle | 2 degree |
Oil tank cap. | 50 Gal. |
Main motor | 20 HP |
Power B.G. motor | 1 HP/servo |
Machine weight | 14,850 lbs |
Machine dimensions | 181” x 99” x 65” |
