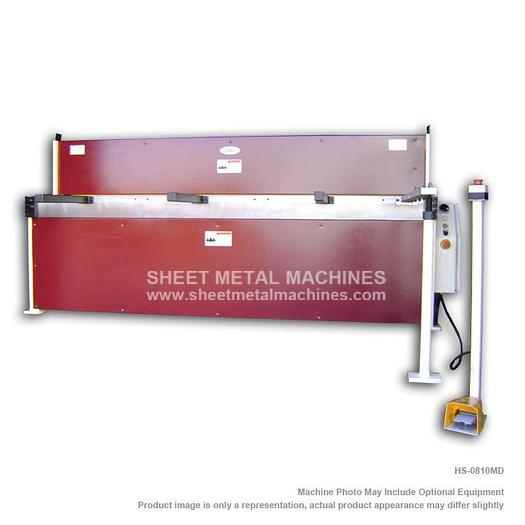

GMC Deluxe Hydraulic Shear HS-0810MD

GMC Deluxe Hydraulic Shear HS-0810MD

$17,850 FREE SHIPPING! (IN STOCK! READY TO SHIP!)

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer 8' x 10 ga. GMC Deluxe Hydraulic Shear ISO 9001 certified HD all steel construction for maximum rigidity German logic quiet hydraulic system Adjustable stroke from 16-20 strokes per minute 60” long squaring arm with inch / mm scale Work light spring hold-downs high grade carbon/chrome alloy steel blades and hardened to 62 hrc, 2-edge indexable upper blade and 4-edge indexable bottom blade Full length with full view finger guard Front supports and (2) side gauges Safety type foot pedal control Jog, single continuous auto operation modes EQUIPPED WITH: 26” manual back gauge with inch/metric dual scale & one side operated hand wheel 60” long squaring arm with inch / mm scale 2 each 24” front support arms 2 each 14” Side gauges with inlaid inch/metric dual scale Work light Spring independent hold-downs full length finger guard Removable safety foot pedal control Tool box One set blades


OPTIONAL ITEMS: CALL FOR PRICE

  • Safety fence for enclosure of the back side of the machine


Design and Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerGMC Machine Tools
ModelHS-0810MD
ConditionNew
Stock NumberHS-0810MD
Cutting capacity: mild steel8' x 10 Ga
Cutting capacity: stainless steel8' x 14 Ga
Blade length8' 2"
Strokes per minute adjustable16-20
Worktable height30-1/2"
Throat Depth16"
Front support arm length24"
Manual Back Gauge25"
Top Blade Rake Angle1.5 degree
Hydraulic Oil Tank Capacity20 Gal.
Main motor7-1/2 HP, 220/440V, 3 PH
Machine Dimensions118" x 35" x 52"
Net Weight5,650 lbs
