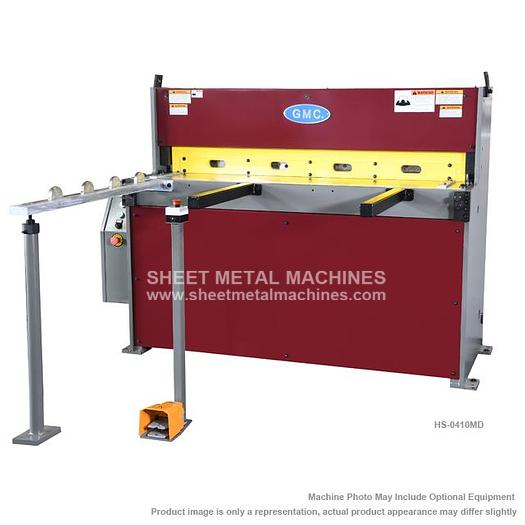

GMC Deluxe Hydraulic Shear HS-0410MD

GMC Deluxe Hydraulic Shear HS-0410MD


orCall 386-304-3720


Please note: many products ship straight from manufacturer GMC Deluxe Hydraulic Shear: HS-0410MD ISO 9001 certified HD all steel construction for maximum rigidity German logic quiet hydraulic system Adjustable stroke from 16-20 strokes per minute 60” long squaring arm with inch / mm scale Work light spring hold-downs high grade carbon/chrome alloy steel blades and hardened to 62 hrc, 2-edge indexable upper blade and 4-edge indexable bottom blade Full length with full view finger guard Front supports and (2) side gauges Safety type foot pedal control Jog, single continuous auto operation modes

EQUIPPED WITH: 26” manual back gauge with inch/metric dual scale & one side operated hand wheel 60” long squaring arm with inch / mm scale 2 each 24” front support arms 2 each 14” Side gauges with inlaid inch/metric dual scale Work light Spring independent hold-downs full length finger guard Removable safety foot pedal control Tool box One set blades

OPTIONAL ITEMS: CALL FOR PRICE Safety fence for enclosure of the back side of the machine


ManufacturerGMC Machine Tools
Stock NumberHS-0410MD
Cutting capacity: Mild steel(4') 52” x 10 Ga.
Cutting capacity: Stainless steel(4') 52" x 14 Ga.
Blade length52"
Strokes per minute adjustable16-20
Throat depth16"
Worktable height30-1/2"
Front support arm length24"
Manual Back Gauge26"
Blade Rake Angle1.5 degree
Hydraulic Oil Tank Capacity15 Gal.
Main motor5-1/2 HP, 220/440V, 3 PH
Machine dimensions68" x 35" x 52”
Net Weight3,050 lbs
