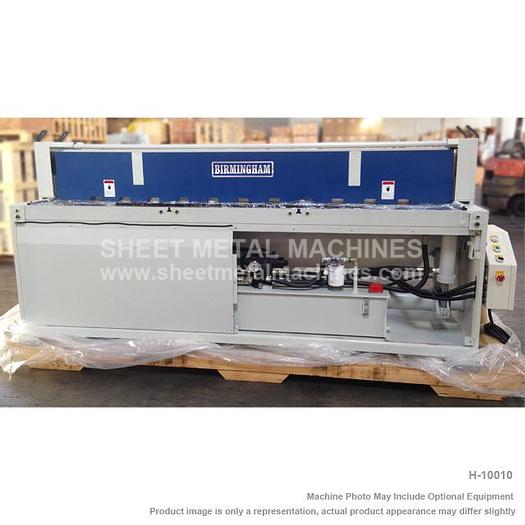

BIRMINGHAM Deluxe Hydraulic Shear H-10010
BIRMINGHAM Deluxe Hydraulic Shear H-10010
$16,146
Description
Please note: many products ship straight from manufacturer BIRMINGHAM 100" (8') x 10 ga Deluxe Hydraulic Shear H-10010 Spring hold downs Two 24" front support arms 24" manual back gauge with wheel Safety full length finger guard High grade, high carbon / chrome Toolbox and leveling pads 2-edge upper blade & edge bottom Two 14" side gauges (R/L) with dual scales Removable foot control pedal with safety protection Fully hydraulic control and safety protection system Electrical control selection for single / continuous mode
STANDARD ACCESSORIES: Blades 24" Manual back gauge (2) 24" Front support arms (2) 14" Side gauges (R/L) with dual scales Finger guard Spring hold downs Removable foot control pedal with safety protection and tools
Specifications
| Manufacturer | Birmingham |
| Model | H-10010 |
| Condition | New |
| Stock Number | H-10010 |
| Cutting Length | 100" |
| Mild Steel | 10 GA |
| Stainless Steel | 13 GA |
| Strokes Per Minute (S.P.M.) | 22 |
| Rake Angle | 1° 30' |
| Front Gauge | 24 |
| Back Gauge | 24 |
| Motor | 7.5 HP |
| Dimensions approx. | 128" x 36" x 55" |
| Net Weight (lbs) | 5,500 |
