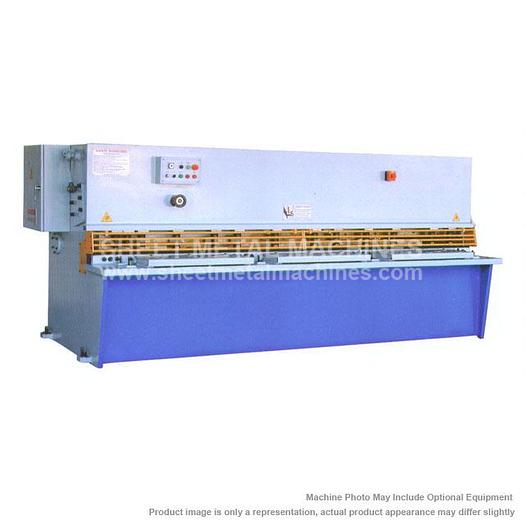

BIRMINGHAM Heavy Duty Hydraulic Shear H-1095-C

BIRMINGHAM Heavy Duty Hydraulic Shear H-1095-C


orCall 386-304-3720


Please note: many products ship straight from manufacturer BIRMINGHAM 10' x 3/8" Heavy Duty Hydraulic Shear H-1095-C High carbon, high chrome shear blades Manual quick change blade gap adjustment Front controlled power backgauge Hydraulic, electrical overload protection Automatic swing, up backgauge Swing beam design Operator control console Low noise gear pump Pressure sensing hold-downs Hold-downs faced with anti-mar neoprene Shadow lighting Stroke counter Electric stroke adjustment Blade guard, micro switch protection Bolt on table segments 1" Ball transfers Squaring arm, 43-1/2" from blade to end 3 support arms


Stock NumberH-1095-C
Capacity10' x 3/8"
Shear Angle1 Deg. 30'
No load strokes10
Range of back gauge0.78" - 24"
Main motor20 HP
Net weight (lbs)22,045
Dimensions (L x W x H)13.3' x 6.7' x 5.9'
Oil Volume (gal)73
Table Height31.5
