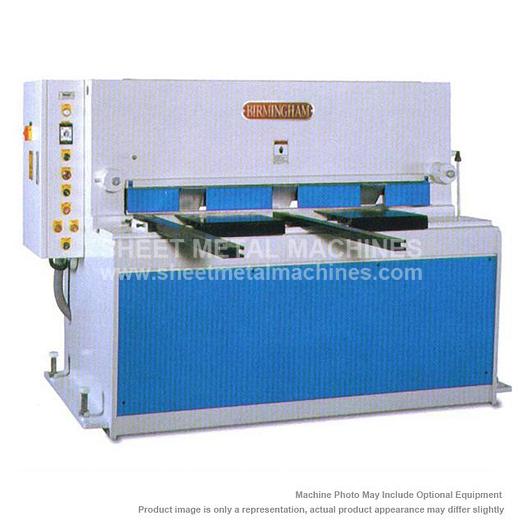

BIRMINGHAM Hydraulic Shear H-0445

BIRMINGHAM Hydraulic Shear H-0445

Contact us for price

orCall 386-304-3720


Please note: many products ship straight from manufacturer BIRMINGHAM 4' x 7 ga Hydraulic Shear H-0445 MADE IN TAIWAN Well balanced and sturdy welded machine frame provides constant stability and rigidity The centralized hydraulic logical system offers the best performance with a quiet hydraulic pump Independent hydraulic pressure hold-downs synchronized with upper blade, ensuring the work piece is securely clamped at the moment of cutting High grade carbon/chrome alloy steel blades ensure maximum accuracy cutting and longer blade life, 60hrc hardened Blade clearance (gap) setting can be easily and quickly done by adjusting handle. (Standard for H-0445 and heavier models) Hydraulic adjustable rake angle design is a standard feature for all models, this allows the operator to obtain best rake angle for each application and minimize possible bowing and twisting Adjustable cutting length and stroke Shadow line lighting covering full length of worktable, this is very helpful to operator for positioning and shearing work piece Worktable mounted with ball transfer type plates, for easier loading and moving work piece Full-length and full view safety finger guard, to protect operator from cutting hazard Removable foot remote pedal is fitted with safety protection, the upper blade beam will rise to top position immediately, when the operator removes off his foot from the pedal All motors and pumps are overload protected Jog, single, or continuous cutting modes

STANDARD ACCESSORIES: Blades 24" Manual Back Gauge 40" Front Support Arm 40" Squaring Arm Finder Guard Foot Pedal Shadow Line Lighting EQUIPPED WITH: High grade, high carbon/chrome 2-edge upper blade, and 4-edge bottom blade, 60hrc. Hydraulic rake angle adjustment. Two 40” front support arms with front setters One 40” squaring arm with dual scale 24” manual back gauge with dual scales and crank wheel Full length finger guard and shadow line lighting Hydraulic independent hold-downs Overload protected hydraulic system Removable foot control pedal with safety protection Full electrics & cabinet with operation panel Tool box and leveling pads.


Stock NumberH-0445
Cutting Capacity4'
Mild Steel7 GA
Stainless Steel11 GA
Blade Length4' 4"
Strokes Per Minute (S.P.M.)40 - 55
Hold-Downs Number8
Hold-Downs Pressure (Tons)3.2
Front Support (Inch)40
Back Gauge (Inch)24
Top Blade Rake AdjustmentHydraulic Adjustment Rake Angle & Blade Clearance Adjust
Top Blade Rake Angle1/2 - 2°
Motor (HP)10
Oil Tank Capacity (Gal)25
Dimensions approx.91" x 48" x 63"
Net Weight (lbs)4,800
