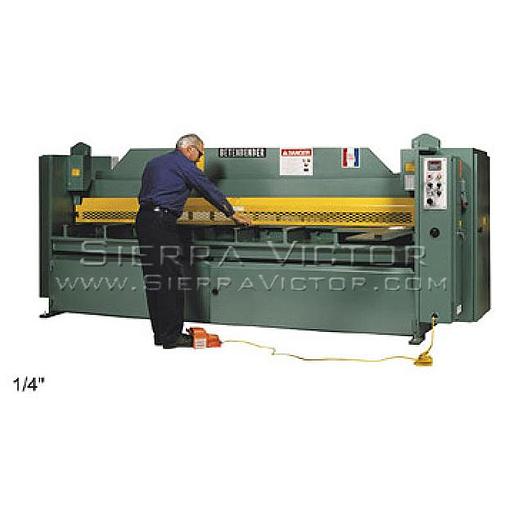

BETENBENDER Hydraulic Shear Model 8-250 8' x 1/4"

BETENBENDER Hydraulic Shear Model 8-250 8' x 1/4"


orCall 386-304-3720


Please note: many products ship straight from manufacturer BETENBENDER Hydraulic Shear Model 8-250 8' x 1/4" ITEM: 8' x 1/4" Hydraulic Shear MANUFACTURER: BETENBENDER MODEL: 8-250 ** FREE SHIPPING TO COMMERCIAL ADDRESS THAT CAN OFFLOAD** BED - Steel one piece box section, stress relieved; welded to side frame insures positive alignment of bed and housings with beam supports that have removable wear tops which allow (1) convenient change to solid top and (2) plates with pin gauging. RAM - Steel, stress relieved. Truss rod construction assures blade parallelism without consuming, short span adjustments. POWER RAKE - allows change of blade rake angle for minimum camber & twist. HYDRO-MECHANICAL HOLDDOWN - firmly grips material to prevent movement and tipping. Optional urethane gripping pad protects soft and polished materials from marking. ALLOY BRONZE GIBS - provides long service life and allow minimum running clearance for accurate control of blade clearance setting. FOOTSWITCH CONTROL - is activated from a fully shrouded portable footswitch operating on 120 volts. DRIVE - two hydraulic cylinders pushing or pulling directly on cross-head, no rotating pin action saving on wear. HYDRAULIC VALVES - in manifold block for a minimum of fitting and piping; "C" frame motor for precision alignment of pump. *PLEASE DESIGNATE VOLTAGE REQUIRED *Machine Start-up/Training of Operators & Maintenance Personnel is Included. *All Hydraulic Oil Included Rigging, Lagging, Leveling & Electrical Hook Up is Customers Responsibility MADE IN USA STANDARD EQUIPMENT: 36" Power Back-gauge w/LED Readout NEMA Electrics 4' Squaring Arm w/Inlaid Scale Disconnect Switch Power Adjust Variable Rake Hydraulic Self‑Compensating Hold-down Bar Assembly Hour Meter Knives/Four Cutting Edges All Steel Construction All Hydraulic Fluids Included Light Beam Gauge Manual Swing-up Back-gauge American Made Motors Lifetime Telephone Support @ No Charge All Components Available from Local Suppliers Safety Interlock Switch for Front Guard Linemaster Foot Switch NC Control 5 Station "Go To * 48" Support Arms/Front Gauges Inlaid Scale (0‑48") Disappearing Stops (Support Arms) * Solid Table Top ‑ Bolt on Segments Machined Solid Table Top Bed * Neoprene Hold-down Caps * One Shot Lubrication Automatic Lubrication Oil Cooler Ball Transfers Angle Gauge Electronic Stroke Control Continuous Stroke (Includes Stroke Counter) Stroke Counter Independent Hold-down Control Extra Foot Pedal w/Keylock Switch Extended Squaring Arm (4' Standard) Flip Up Stops (Squaring Arm) Left Hand Squaring Arm (4') Dovetail Slots or T‑Slots Keylock Switch Increase HP (increase Stroke) Power Blade Gap Adjustment (10ga, 3/16" 1/4") 2 Position Power Blade Gap Adjustment (3/8", 1/2", 5/8", 3/4") §3 Position Power Blade Gap Adjustment (3/8", 1/2", 5/8", 3/4") Pneumatic Sheet Support 208V Gap Type Machine: (Slitting) Special Paint Colors Other Electrics and Motors Bolt/Shim Kit for Leveling Crating Charge (Not an Export Crate) Still Requires Tarping BACKGAUGES: Power Lift *Automatic Power Lift Extra Length on Back-gauge CNC Back-gauge ASK ABOUT OPTIONS NOT LISTED. ALL PRICES ARE SUBJECT TO CHANGE WITHOUT NOTICE. * RECOMMENDED OPTIONS FOR ALL MACHINES § RECOMMENDED OPTIONS FOR 3/8", 1/2" AND 3/4" MACHINES.


Stock Number8-250
Capacity - A-36 Mild Steel (80,000 lb. tensile)1/4"
Capacity - 304 Stainless Steel (Non-Production)1/4" (.250")
6061 T-6 Aluminum (soft).450"
Main Motor (H.P.)15 (460V / 3ph)
Nominal Cutting Length100"
Number of Holddowns15
Knives (Four(4) Cutting Edges)100" x 1" x 4"
Rake of Moving Blade (per foot)1/4
Back Gauge Range36"
Strokes Per Minute17
Oil Reservoir (Hydraulic Oil Included).42 gallons
Shipping Weight9,800 lbs.
Overall Length132"
Overall Width (w/backgauge)80"
