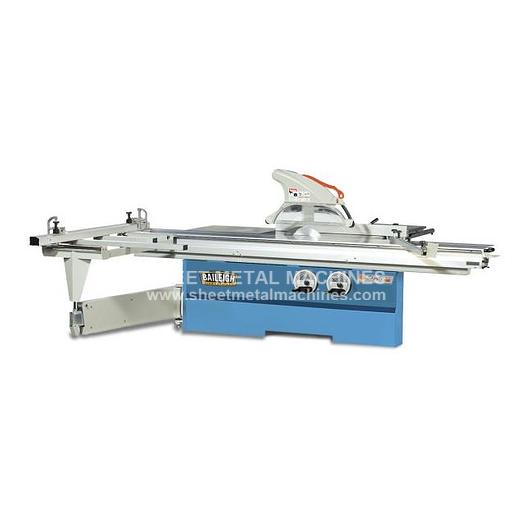

BAILEIGH Sliding Table Saw STS-14120

BAILEIGH Sliding Table Saw STS-14120

$10,995

orCall 386-304-3720

Description

  • Please note: many products ship straight from manufacturer Need to cut thousands of feet of board over 3 daily shifts? This 7.5 hp industrial table saw will deliver accurate results every time. One operator can easily handle 10-foot wood panels.
  • Simplest and most economical of our STS-14120 models.
  • Choose from 3 blade speeds (3,000, 4,000, and 5,000 rpm) depending on the hardness and thickness of your material.
  • 7.5 hp motor runs on 220-volt 3-phase power.
  • Standard 12” blade turns on 1” arbor.
  • Also accepts a huge 14” blade without modification.
  • Includes fences for rip cuts, crosscuts, and angle or miter cuts.
  • 1 hp scoring blade spins at 8,000 rpm to ensure a crisp, clean cut without frayed or ripped edges.
  • Scoring blade saves you time. No extra work sanding edges after a cut.
  • Huge 15” x 125” sliding table slides on 4 precision shafts for jitter-free motion.
  • Table is made of fully-extruded, anodized aluminum that will stay square and true over many years of use.
  • The table moves so smoothly that you can slide a whole sheet of 4 x 8 material without ever thinking there’s weight on it.
  • Steel handwheel allows you to tilt the blade and incorporates a digital readout (DRO) for telling you the angle.
  • Rugged all-steel base stabilizes the machine and reduces vibrations for flawless accuracy and alignment.
  • Durable cast steel trunnion has heavy boxed (not dovetailed) ways.
  • CSA certified.
  • Includes a safety blade guard with a tension system for lifting and lowering the guard without moving it from side to side.
  • 4” dust port lets you hook up an extraction system to keep you shop clean.
  • The Sliding Table Saw STS-14120 is covered by a 1-year parts warranty.
  • You can count on lifetime technical support by phone. Our team of knowledgeable customer reps are here to help.
  • Recommended for:Industrial production, especially cabinetry manufacturers, lumber liquidators, and railroad yards.
  • Crews of experienced shift-workers who are comfortable measuring for repeatability and don’t need to rely on DROs or programming.
  • Available in 2 other versions: STS-14120-DRO (with digital readouts on fences) and STS-14120-CNC (with a programmable CNC system).

ITEM: 15" x 125" Sliding Table Saw MANUFACTURER: BAILEIGH MODEL: STS-14120

Specifications

ManufacturerBaileigh Industrial
ModelSTS-14120
ConditionNew
Stock NumberSTS-14120
Table Size (Length)126"
Table Size (Width)15"
RPM3000/4000/5000
Max Stock Width51"
Table Saw Blade Diameter12"
Table Saw Arbor1"
Table Saw Cutting Height @ 90°4.125"
Table Saw Cutting Height @ 45°2.75"
Table Saw Scoring Blade RPM8000
Table Saw Scoring Blade Diameter4.5"
Table Saw Scoring Blade Arbor7/8"
Power220V, Three Phase
Horse Power7.5
Length132"
Width52"
Height40"
Weight2,250 lbs.
