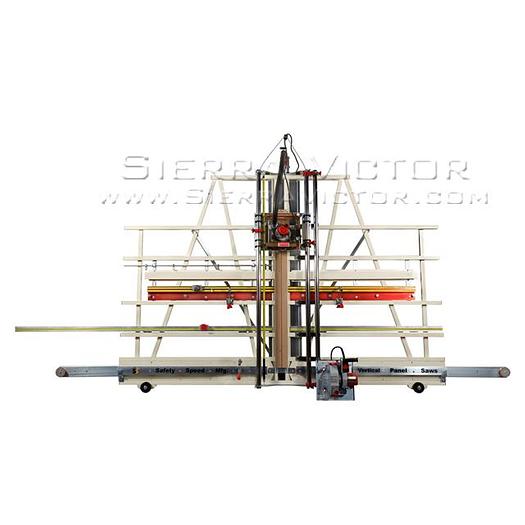

SAFETY SPEED CUT ACM 120V Panel Saw & 120V Router Combination SR5A

SAFETY SPEED CUT ACM 120V Panel Saw & 120V Router Combination SR5A

$6,767

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer SAFETY SPEED CUT ACM 120V Panel Saw & 120V Router Combination SR5A The SR5A panel saw/router combo allows operators to saw and rout on one vertical steel frame. The unique design of this unit allows for accurate cutting and V-Grooving of ACM (Aluminum Composite Material) panels. Features a unique floating router with a nylon guide guaranteeing a consistent depth of cut. The saw can also be switched over to a router in less than one minute. It also features a dust system in place to collect debris while cutting and routing. STANDARD EQUIPMENT: 3-1/4 Hp, 15 amp industrial duty saw motor. 1-3/4 Hp, 11 amp industrial duty router motor. 10 ft. Welded steel frame. Chrome plated 1-3/4” guide tubes. 8 Nylatron roller bearing systems. Adjustable vertical and horizontal rulers. Quick change from vertical and horizontal cutting. Thin material pressure guard. Injection molded plastic material rollers. Counterweight system. Adjustable floating router head. MID-WAY FENCE with stop. 4 material clamps. 2 blind dado stops. Wheels. Fixed Stand. Extensions. Left and right quick stop gauges. MID-WAY FENCE flip stop. Dust hood and hose kit. Hold down bar. Specialty saw blade and router bit for v-grooving ITEM: 62" ACM Panel Saw & Router Combination (120V) MANUFACTURER: SAFETY SPEED MFG MODEL: SR5A SEE ATTACHMENTS TAB FOR PRICING: Wheels: Allow the machine to be moved easily when in the completely upright position. When the machine is resting on either stand, wheels are disengaged and the machine will not move independently. Dust Collection System : Our Dust Collection options allow you to efficiently remove most airborne dust particles and maintain a safer, cleaner working environment. For new machine purchases, select a dust kit that matches your model number. For previously purchased machines additional components are required. Choose one of our industrial vacuums to complete your dust collection system or hook up your machine to an existing collector. QUICK STOP GAUGE: The QUICK STOP gauge promotes easily adjustable repeat cutting. Using an 8' long heavy extrusion with an embedded scale and an adjustable machined aluminum stop block, the QUICK STOP gauge provides an easy to use method of making repeat cuts at any length. Fixed Stand: The Fixed Stand allows the machine to free stand anywhere in your shop. The tripod design minimizes the effects of the most uneven shop floor while holding your machine at the optimum angle for stable material handling and cutting. Hold Down Bar: The Hold Down Bar keeps thin and flexible materials firmly against the machine frame for accurate, easy and safe cutting. The Hold Down Bar features spring steel fingers with non- marring rollers to reduce vibration and flex while cutting thin materials. MID-WAY FENCE : Brings your small panel work to waist height. Reduce back fatigue while cutting quantities of small panels on your machine. The MID-WAY FENCE system uses removable fence supports on both the left and right of the machine center. Included is a stop block riding over recessed gauges for setting stops for repeat cuts. Stop Bar Gauge: The Stop Bar is a multiple stop system for production shops. Its 8' length has an imbedded gauge with adjustable, flip down stops for cutting of up to 8 standard lengths. Specialty Saw Blades : We offer a wide range of high quality Saw Blades for various applications. These blades are carefully selected for optimal performance while cutting a variety of materials from plywood, plastics, composite panels and aluminum. Extensions : Come as a pair and add 20" to each side of the material handling roller fence allowing for easy processing of larger panels. Extensions enable full sized machines to easily cut panels larger than 10' in length, quickly, accurately and safely, with just a single operator. PART # ITEM H10 Wheels 6420 Fixed Stand H30 Extensions H6460 Quick stop gauge (8ft / 2.44m) H6450 Stop bar gauge H6460-DRO Digital Quick Stop H6480 MID-WAY FENCE flip stop. VSR Dust Dust kit (New machine purchases only) includes: hose, rollers, dust tube and elbow ( Existing machines may require dust bonnett) 740C Industrial VAC - 1 HP, 100 CFM, 90" S.P. 740CC Industrial VAC - 2.25 HP, 115 CFM, 110" S.P. 6440 Hold down bar PD1 Panel Dolly AUTO1 Automater (all 120 Volt machines) — High quality saw blades and router bits — Digital readout for vertical cuts

Specifications

ManufacturerSafety Speed Cut
ModelSR5A
ConditionNew
Stock NumberSR5A
Max. Crosscut62" / 1,575mm
Max. Rip CutUnlimited
Max. Cut Thickness1-3/4" / 45mm
Cut Accuracy, Straight and Square1/64" / .4mm
Saw Blade Diameter8"/210mm
Motor15 amp, 120V or 220V
Router11 amp, 120V or 220V
Frame Length120" / 3,050mm
Dimensions90" x 120" x 36"
Shipping Dimensions120" x 17" x 92"
Shipping Weight636 lbs.
