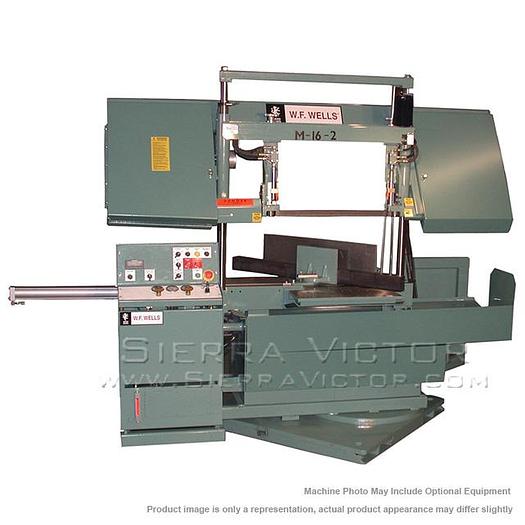

W.F. WELLS Twin Post Horizontal Miter Band Saw M-16-2

W.F. WELLS Twin Post Horizontal Miter Band Saw M-16-2

Contact us for price

orCall 386-304-3720


Please note: many products ship straight from manufacturer W.F. WELLS Twin Post Horizontal Miter Band Saw M-16-2 The M-16-2 series features hydraulic swivel base, automatic preset hydraulic blade tension, a hydraulic miter vise with variable clamping pressure and increased sawing pressure for severe applications. These features provide easier and more productive operator control. Twin post design allows for more accurate cutting, notching, and easier cut entry on all tubing due to the compound angles introduced by scissor type saw design. MADE IN USA STANDARD EQUIPMENT: 1-1/4” Bimetal Blade Hydraulic swivel base, single direction Carbide guides with roller backups Hydraulic miter vise with variable pressure Hydraulically controlled blade tension Operator manual and parts list Semi-automatic operation Built-in coolant system Blade powered rotary cleaning brush TEFC Motors Fused disconnect with lockout NFPA-79 electrics Automatic end-of-cut shut off Quick and easy blade speed change Feed pressure monitor/regular All safety guards Digital angle display In feed roller, back of saw bed Electronic door interlocks ITEM: 16" x 26" Twin Post Horizontal Miter Bandsaw MANUFACTURER: W.F. WELLS MODEL: M-16-2 PART # ITEM 0056038 Hydraulic Holddown, Saw Vise 0056036 Hydraulic Chip Conveyor, Auger Style — Free Standing Outboard Vise 0056325 Laser Shadow Line 0056040 Blade Break/Stall Switch 0056204 Hydraulic Powered Conveyor 21" x 10' 0056252 Non-Powered Conveyor 21" x 5' 0056251 Non-Powered Conveyor 21" x 10' — Other Conveyor Options Available Upon Request – *


ManufacturerWF WELLS
Stock NumberM-16-2
Weight Capacity5,000 lbs
Blade Speed Range60-500 SFPM
Blade Size1-1/4” x .042” x 16' 8"
Blade GuidesRollers and Carbide Side Blocks
Blade TensionHydraulic
Bandwheel Size20"
ViseHydraulic Miter
Blade Drive7-1/2 HP, AC Vector Drive
Sawing Force0-750 lbs.
Coolant Capacity15 Gallons
Hydraulic Capacity20 Gallon
Hydraulic Drive2 HP Motor
Work Height35"
Shipping Weight3,800 lbs
ElectricsWired to NFPA 79 Machine Tool Standards
Shipping Dimensions120”L x 60”W x 90”H
