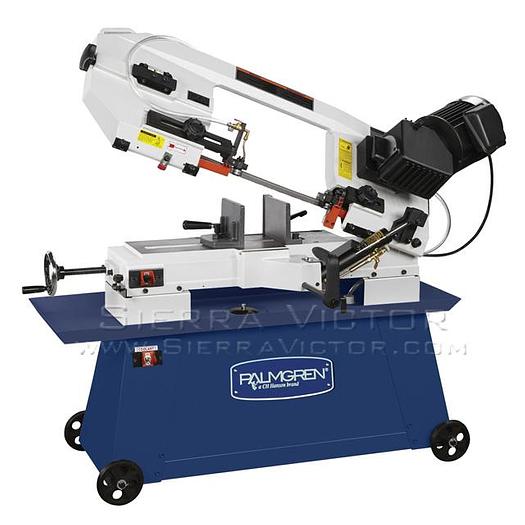

PALMGREN Horizontal Bandsaw 9683308

PALMGREN Horizontal Bandsaw 9683308

$1,932.82

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer PALMGREN 8" x 12" Horizontal Bandsaw 9683308 Cast iron and rigid steel construction of the saw head and base provides full blade support, eliminating vibration and deflection. The combination of a direct drive train and hydraulic feed system delivers consistent accurate cuts

  • DIRECT MOTOR DRIVE: The all gear drive power train is directly connected to the motor to deliver full power at any speed, driving the blade at nearly 100% of the available horsepower. The end result is higher efficiency, consistent speed to the blade resulting in longer blade life.
  • THREE JAW VISE: For standard cut off applications the rigid design makes square cuts easy. When miter cuts are required no wrenches or readjusting of the vise jaws are needed to set-up the vise. The angle can be pre-adjusted by simply loosening a handle.


STANDARD EQUIPMENT:

  • Longer and larger blade wheels provide a greater radius to reduce stress on the blade
  • No belts to set or change
  • No wrenches are needed - the angle of cut can be easily set with the turn of a handle
  • Hydraulic feed control for cutting stock at variable rates
  • Adjustable blade guides deliver accurate cuts
  • Chip blade brush
  • Coolant system with adjustable coolant flow
  • Wheels that roll easy for positioning


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerPALMGREN
Model9683308
ConditionNew
Stock Number9683308
HP1
Voltage120/240V
Phase1
Blade Size0.75" x 0.035" x 93"
Blade Speed SFPM150/210/255
Length51"
Width19"
Height43"
Weight363 lbs.
Cutting Capacity - Round 90°8"
Cutting Capacity - Round 45°4.75"
Cutting Capacity - Rectrangle 90°6.5" x 11", 2" x 12"
Cutting Capacity - Rectrangle 45°7.87" x 4.72"
